Overview

Features

  • Compact design for space restrictions; min. service area
  • Inlet above element for extended element life & maintenance intervals
  • Corrosive resistant cast aluminum top with machined connections and integrated baffle design
  • Shatter-resistant polycarbonate drop down bucket
  • Stainless steel float capsule for emergency shut-off
  • Stainless steel perforated float tube (SS expanded metal on 1” to 1 1/2”)
  • Clamp style swing bolts on 3” & 4” standard
  • 1” drain
  • Vacuum Rating: medium vacuum service
  • Temp (continuous): min ‐15°F (‐26°C) max 220°F (104°C)

Description

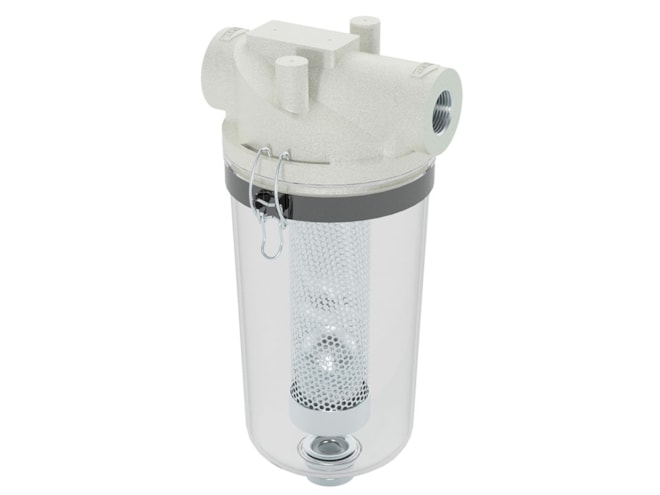

STS Series: Straight Through Liquid Separator

Inlet air with potentially harmful liquid and large particulate enters the housing and is separated by a baffle mechanism and directional air flow changes. The larger particles and liquid drop down and collect at the bottom of the separator. The float capsule within the separator screen rises with the liquid level until max capacity and limits the flow, thereby protecting the pump from damage.

In Stock

Part Number Price Available
STS-150C
$742.00 1 in stock
STS-200C
$984.00 1 in stock
STS-300C
$1,575.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 days". Click here to select options
