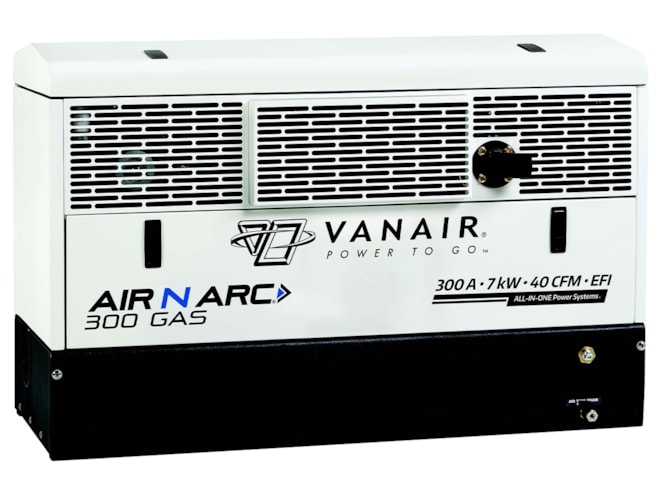

Vanair Air N Arc 300 Gas Rotary Screw Air Compressor with Generator and Welder

Enclosed 40 CFM rotary screw air compressor with 7 kW generator, 300 AMP welder, battery booster, and battery charger.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $16,281.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Don Mazanec headshot

Don Mazanec

Senior Applications Specialist - 4 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Kohler 26.5 HP EFI, air cooled motor
    • Electric start
    • Glow plugs
  • Belt driven
  • Compressor:
    • Rotary screw
    • 40 CFM at 150 PSI
    • 175 PSI max pressure
  • Generator:
    • 7 kW peak, 4.2 kW continuous
    • 60 Hz, single phase
    • Two 120V and 240V outlets
    • Independent AC generator
    • Brushless design
  • Welder:
    • High Frequency DC Welding
    • 270 AMPs at 100% duty cycle
    • 40 to 300 AMPs Operating Range
    • 15 to 30V range
    • Independent DC welder
    • Auto speed control
    • CV MIG capabilities

The Vanair Air N Arc 300 gas rotary screw air compressor with generator and welder provides more efficient use of truck bed space and reduces cost by combining five power sources: a rotary screw air compressor, a 7 kW generator, a 300 AMP welder, a battery booster, and a battery charger all in one unit. Designed as a true two generator system, the Air N Arc 300 series allows multi-functioning such as welding and utilizing the generator at the same time for lights.
