Compact Performance Where You Need It

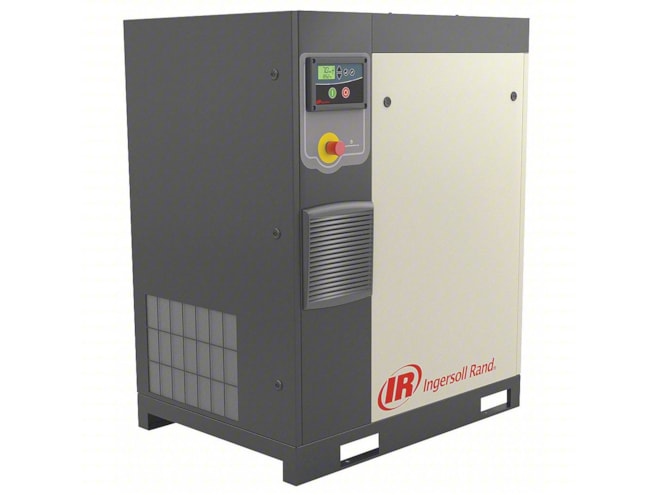

The reliable Ingersoll Rand R-Series 4-11 kW compressor extends the R-Series family into the commercial machine range as well as offers innovative features and a compact design that fits virtually any application environment.
A Legacy of Engineered Reliability
Ingersoll Rand has taken the best features from the current R-Series family to deliver the same great performance in
the 4-11 kW range. Improved innovations such as leak-free PTFE hoses with O-ring face seals, a next-generation airend, and a reduced number of components continues our legacy of reliability.
Convenient, Programmable Control
Ingersoll Rand Xe Series controllers deliver increased control functionality through an intuitive user interface with large navigation buttons for both fixed and variable speed drives
The vertically-stacked internal components reduce the base-plate compressor footprint by 20%, compared to previous models.
Proven Reliability. Robust Design.
The R-Series 4-11 kW family of compressors delivers optimum performance and easier maintenance, all in a robust, innovative package.
Vertically-stacked drive components with airend mounted above the main motor reduce overall footprint, improve balance and simplify belt tensioning
Common platform allows for use of the same consumables for both fixed speed and variable speed drive units.
Quiet operation (69 dB(A)) – complements the small footprint for installation and operation within limited workspaces
Reliable, Precise Operation
New airend with integrated separation system provides air/oil separation (<5 ppm) for peak air quality
Upgrades to PTFE hoses with O-ring face seals and fewer components reduce the potential for leaks and increase reliability
TEFC, Tri-Voltage (208-230/460/3/60V) motor improves reliability and application flexibility in fixed-speed machines
IE3 energy-efficient fixed and variable speed motors support continuous operation up to 46 Degree C (115 Degree F). Improved cooler design minimizes thermal expansion effects

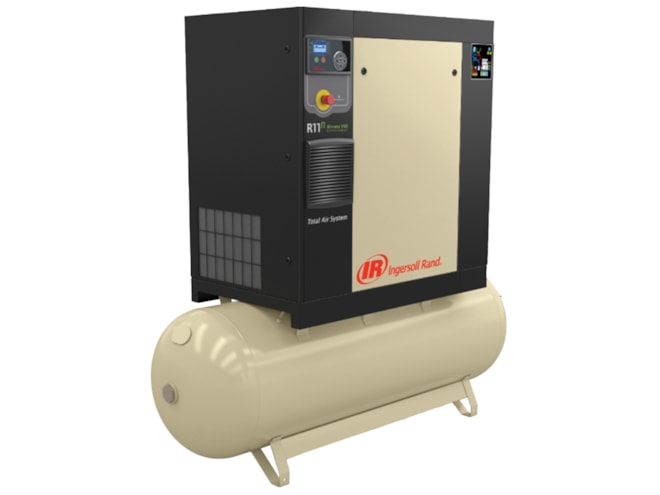

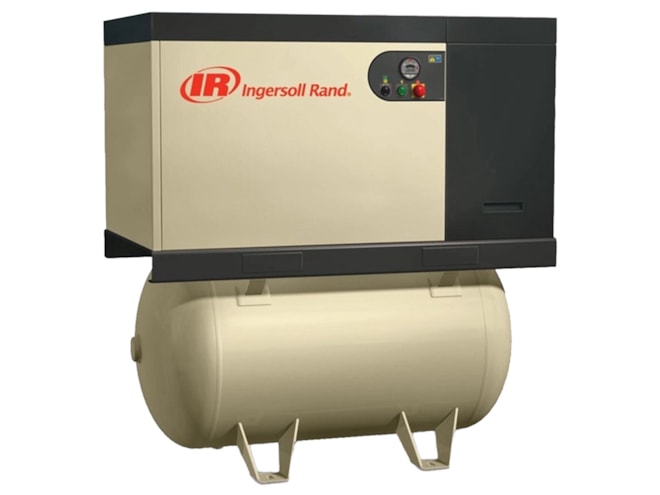

TAS – The Total Package
To provide the most comprehensive air solution, our Ingersoll Rand R-Series compressors are available with a Total Air System (TAS) option. These complete compressors, cooler and dryer systems come with integrated controls, water separators, drain ports, filters and receiver tanks. For any capacity you need, let Ingersoll Rand provide the complete answer in a compact solution that fits your air requirements and your workspace!
- High-efficiency and general purpose filters (with integrated dryer) deliver ISO 1-5-1 quality air
- 3-in-1 heat exchanger provides increased reliability and efficiency
- Class-leading dryer design with proven reliability, minimizes installation costs with a single-point power connection
