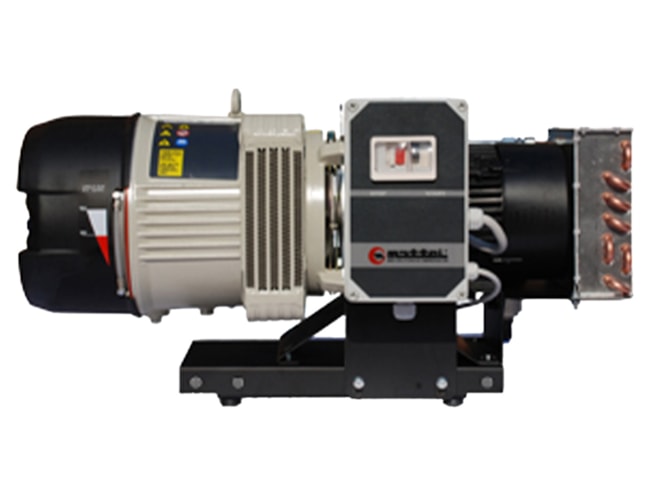

Mattei Classic ERC Series Rotary Vane Air Compressor
2 to 60 hp, open frame direct drive fixed speed, rotary vane air compressor.

-
Mattei Classic ERC Series Rotary Vane Air Compressor - 2HP and 3HP models -
Mattei Classic ERC Series Rotary Vane Air Compressor - 5HP to 30HP models, Base Mount -
Mattei Classic ERC Series Rotary Vane Air Compressor - 5HP to 30HP models, Tank Mount -
Mattei Classic ERC Series Rotary Vane Air Compressor - 40HP to 60HP models
Overview
Features
- 5 to 60 HP options
- TEFC motor (ODP motor for 50 and 60 HP models)
- Flow rate:
- Up to 154 CFM at 125 PSI (5 to 40 HP)
- Up to 260 CFM at 115 PSI (50 and 60 HP)
- Automatic flow rate control
- High-efficiency intake filter
- Aftercooler included as standard
- Optional 80 or 120 gallon receiver tank mounting available (5 to 15 HP only)
Description
The Mattei Classic ERC Series Rotary Vane Air Compressor features an electric motor which turns at 1,800 rpm. This motor is directly coupled to the compressor shaft through a flexible coupling that provides energy savings and less maintenance as there are no transmission losses due to the absence of gears or v-belts.
The Classic ERC Series is painted with epoxy powders that are resistant to corrosion and scratches. This coating combined with the compact design makes the ERC Series ideal for installation in confined areas. Mattei's vane technology ensures a high level of reliability and quiet operation even in the absence of a sound enclosure. This lack of an enclosure also simplifies access for all maintenance and service operations.
