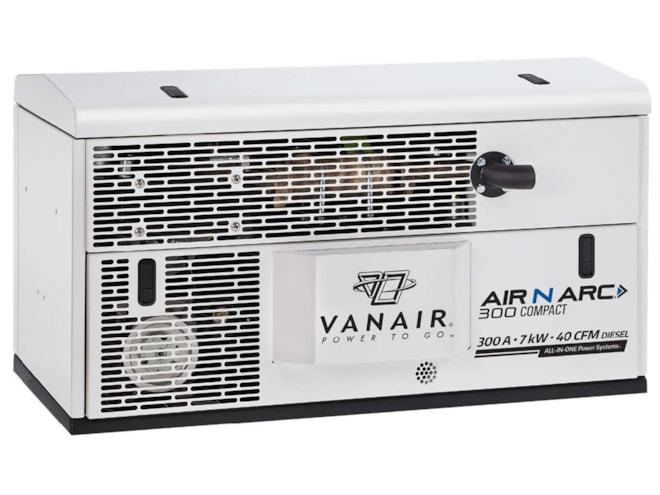

Vanair Air N Arc 300 Compact Diesel Rotary Screw Compressor, Generator/Welder

Diesel powered 40 CFM rotary screw air compressor with 7 kW generator and 300 AMP welder for under box type body mounting.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $21,605.54
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Henry Santos headshot

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 7.5 inches shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank
  • Kubota 25 HP liquid cooled motor
    • Electric start
    • Glow plugs
  • Belt driven
  • Compressor:
    • Rotary screw
    • 40 CFM at 150 PSI
    • 175 PSI max pressure
  • Generator:
    • 7 kW peak, 4.2 kW continuous
    • 60 Hz, single phase
    • Two 120V and one 240V outlets
    • Independent AC generator
    • Brushless design
  • Welder:
    • High Frequency DC Welding
    • 270 AMPs at 100% duty cycle
    • 40 to 300 AMPs Operating Range
    • 15 to 30V range
    • Independent DC welder
    • Auto speed control
    • CV MIG capabilities

The Vanair Air N Arc 300 Compact Diesel Rotary Screw Air Compressor with Generator/Welder maintains the full functionality of five power sources and the multi-function capability in one unit. The Air N Arc 300 Compact is specifically designed to be mounted under a box type body. This compact compressor/generator/welder is 7.5" shorter and up to 100 lbs lighter than the standard Air N Arc 300 with fuel tank and provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still providing proper ground clearance.
