Overview

Features

  • Tank mount
  • 120 gallon
  • 15 HP
  • 150 PSI pressure rating
  • 49.2 CFM capacity
  • 208-230/460/3/60
  • Integrated air dryer included

Description

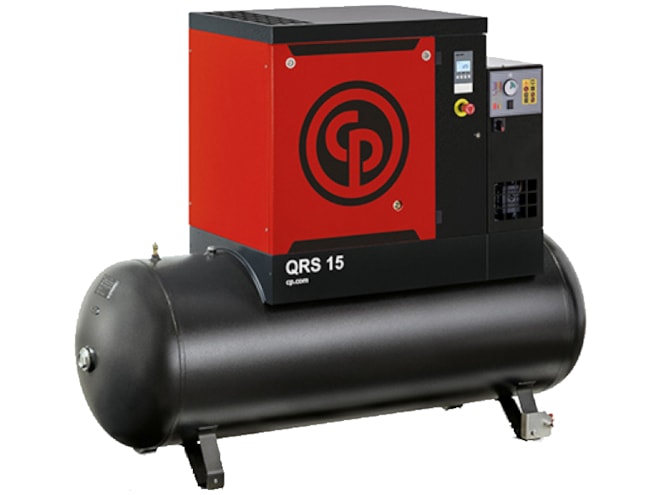

The Chicago Pneumatic QRS 15D, 15 HP 208-230/460/3/60 Rotary Screw Air Compressor is housed in a low sound enclosure and comes with spin-on oil and separator filters as standard. It is ideal for a range of applications including tire shops, maintenance shops, paint shops, automotive and industrial light applications. The unit is designed for 100% continuous duty, running at lower RPMs to maximize runtime. Receivers for tank mount options are ASME/CRN certified, and the product is NEMA 1 electrical protected with a UL and cUL approved control panel.

The ES4000 basic controller is programmed for energy saving operation with intelligent shutdown. It features an icon based display with pressure and temperature settings/readings, running and working hours, service warnings, element outlet temperature reading, and automatic restart after voltage failure.
