• Tank mount (60 gallon)
  • 10 HP
  • 145 PSI pressure rating
  • 34.1 CFM capacity
  • 208-230/460/3/60 voltage
  • Integrated air dryer

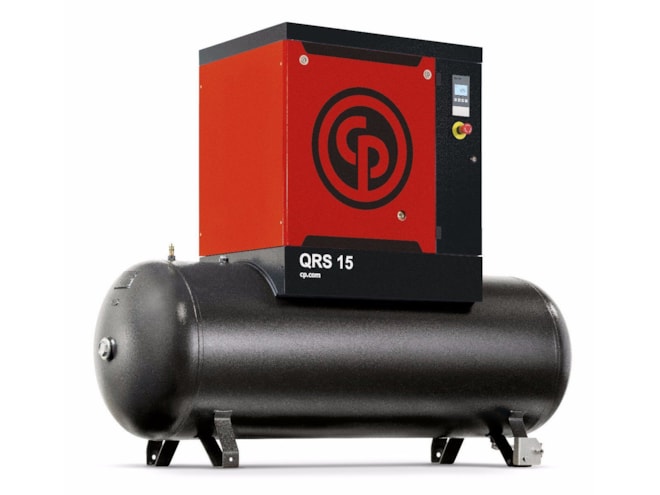

The Chicago Pneumatic QRSM 10 Rotary Screw Air Compressor is housed in a low sound enclosure and comes with spin-on oil and separator filters as standard. It is ideal for a range of applications including tire shops, maintenance shops, paint shops, automotive and industrial light applications. The unit is designed for 100% continuous duty, running at lower RPMs to maximize runtime. Receivers for tank mount compressors are ASME/CRN certified, and the product is NEMA 1 electrical protected with a UL and cUL approved control panel.

The ES4000 basic controller is programmed for energy saving operation with intelligent shutdown. It features an icon based display with pressure and temperature settings/readings, running and working hours, service warnings, element outlet temperature reading, and automatic restart after voltage failure.
