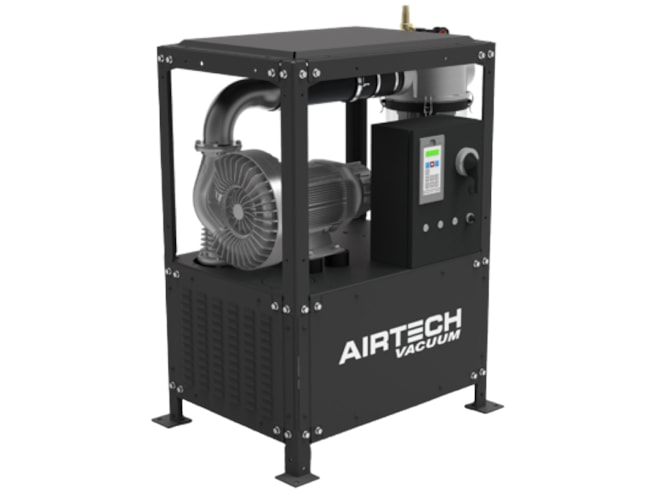

Airtech AKB Series Kinetic Blower System

Single stage package, frame assembled, pre-piped. and pre-wired for single point vacuum and electrical connection.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • IE4/NEMA super-premium permanent magnet motor
  • Rotational speeds up to 13500 RPM
  • 588 CFM max capacity
  • Up to -225/401 inH2O vacuum/pressure
  • Hybrid ceramic ball bearings
  • Non-contacting Titanium impeller
  • NEMA 4 Enclosure
  • IP54 Variable Frequency Drive
    • Factory programmed with transducer and digital vacuum display
  • Through the door circuit breaker type disconnects
  • Remote control pad, 30ft extended cable to table
  • Discharge silencer
  • Pre-piped / pre-wired for single point vacuum
  • Factory tested in accordance with ISO 9001 procedures

The Airtech USA AKB Series kinetic blower system is frame assembled, pre-piped, and pre-wired for single point vacuum and electrical connection. The system is then thoroughly factory tested in accordance with ISO 9001 procedures before shipment.

The Airtech USA AKB Series kinetic blower is a dynamic blower that transfers kinetic energy to the gas stream by a contactless high-performance titanium impeller. The minimized internal losses lead to high efficiencies and silent compression at rotational speeds up to 13500 RPM. The AKB Series features permanently greased hybrid ceramic ball bearings and a fan-cooled neodymium magnet IE4/NEMA super-premium permanent magnet motor for increased efficiency.
