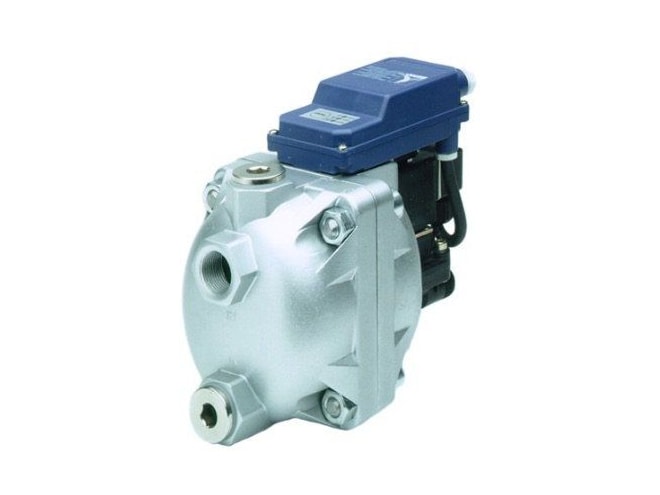

BEKO Technologies BEKOMAT CV Series Zero Loss Condensate Drain

For centrifugal compressors with check valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $1,153.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 2,000 to 50,000 SCFM compressor capacity
  • 4,000 to 100,000 SCFM dryer capacity
  • 232 PSIG pressure rating
  • 1/2" to 1" NPT connection
  • 33 to 140°F operating temperature
  • 115 VAC
  • Standard Viton® diaphragm

The BEKO Technologies BEKOMAT CV Series Zero Loss Condensate Drain applies an integrated capacity sensor, smart electronics for volume-controlled discharge, and a proven pilot controlled solenoid valve to release condensate without the loss of compressed air, reducing energy costs and CO2 emissions. An integrated sieve eliminates the need for a Y-strainer, and the possibility of damage due to dirt or other particulates. A visual status indication is given on the drain and can be wired for remote access. The unit continuously monitors both level and function for autonomous operation. The unit includes aluminum housing with a check-valve set, plus hard coating for the 50,000 SCFM compressor capacity option.
