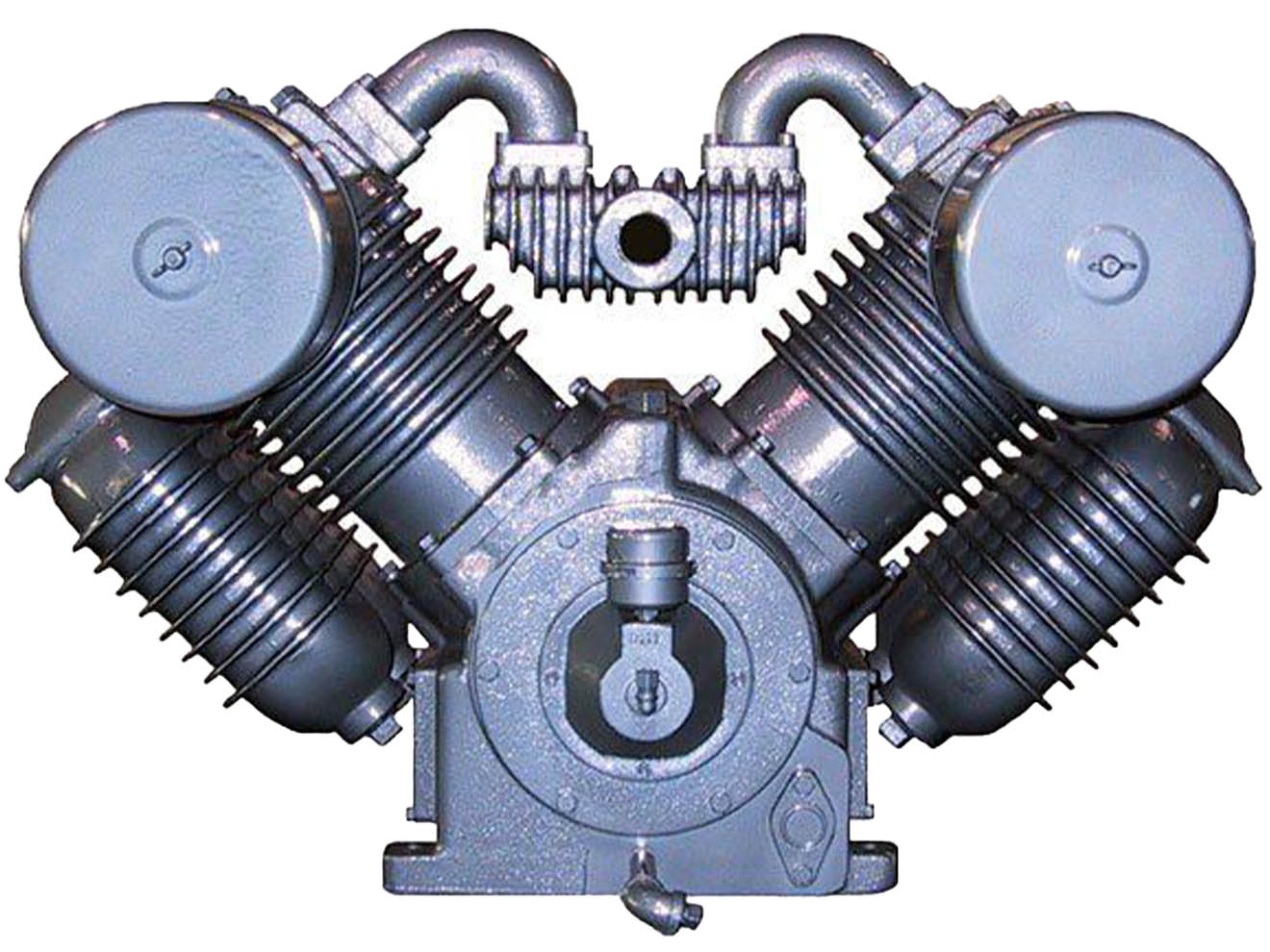

Saylor-Beall Two Stage Piston Air Compressor Pump
Splash or pressure lubricated compressor pump with included flywheel and rated up to 175psi.
Starting at $2,007.00
Starting at
$1,705.95
Manufactured
- By Saylor-Beall
- Made in the USA
Includes
Availability
Contact an Expert
Don Mazanec
Senior Applications Specialist - 3 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- Capacity (displacement):
- 1.5 to 2 HP: 10 CFM
- 3 to 5 HP: 23 CFM
- 7.5 to 10 HP: 46 CFM
- 10 to 15 HP: 63.7 CFM
- 15 to 30 HP: 127.4 CFM
- RPM:
- 1.5 to 2 HP: 510 RPM
- 3 to 5 HP: 845 RPM
- 7.5 to 10 HP: 845 RPM
- 10 to 15 HP: 830 RPM
- 15 to 30 HP: 830 RPM
- Start / stop operation
- Optional head unloaders available
- Cast iron construction
- Finned cast iron intercooler
- Centrifugal unloader / no-load starting
Description
The Saylor-Beall two stage piston air compressor pump is manufactured with durable cast iron construction to withstand the stress from heat and use. These pumps are available in 1.5 to 30 HP options (10 to 127.4 CFM displacement) with a maximum working pressure of 175psi. Splash or pressure lubrication options are available along with the choice of including head unloaders.
