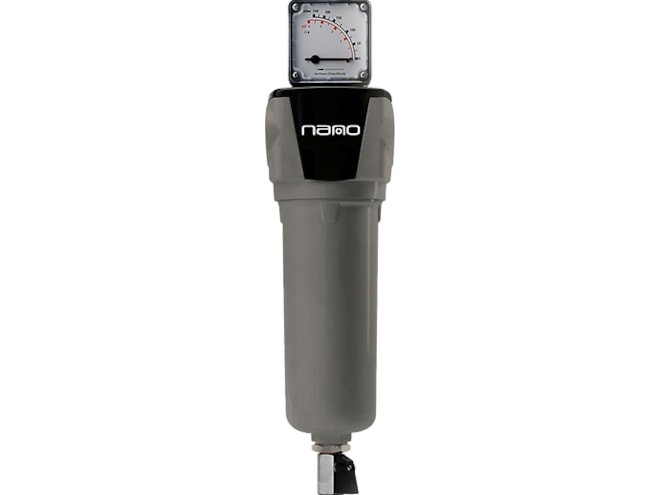

nano-purification solutions NMV Medical Vacuum Filter

Eliminates solid, liquid, and bacterial contamination from medical vacuum systems.

Features

  • 2.1 to 156 SCFM capacity
  • 1/4" to 3" NPT inlet/outlet connection
  • Vacuum indicator/gauge included
  • Full vacuum to 7 PSIG design operating pressure range
  • >99.995% DOP particle removal efficiency
  • 0.44 PSID clean pressure drop
  • 35 to 140°F design operating temperature range
  • 6 month/1,000 hour maximum element life

The nano-purification solutions NMV Medical Vacuum Filter applies a modular design to allow close couple of filters, simplifying installation and maintenance. The filter's housing is manufactured from cast aluminum alloy, providing enhanced strength and featuring an E-Coat™ finish for optimum corrosion protection. The drop fit element engages the bowl to prevent vibration, improving stability and drainage. A manual valve and sterilizable glass drain flask are included as standard. The element design includes an oleophobic borosilicate microfiber media with an open cell reticulated foam prefilter.

Applications

  • Dental
  • Medical
  • Veterinary
