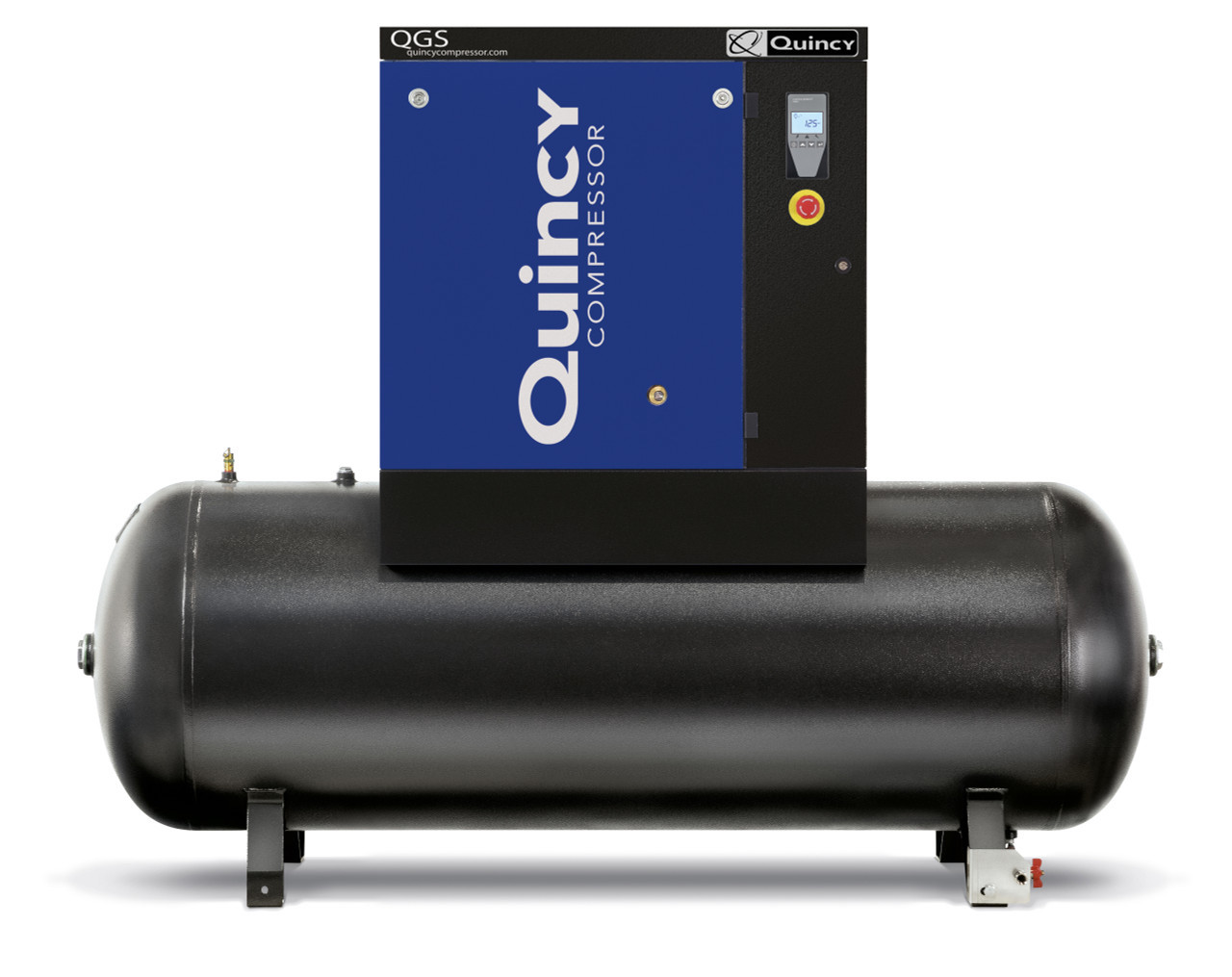

Quincy Compressor QGS Series Rotary Screw Air Compressor
5 to 50 HP fixed speed compressor with a TEFC drive motor and air-cooled after cooler for full airflow capacity applications.
- By Quincy Compressor
- Factory Warranty and Support Available
-
Manufacturer has some models in stock. View available part numbers.
- Excluded From Free Shipping
- Local Service Available on All Brands
Overview
Features
- Models from 17 to 203 CFM capacity
- 125 or 150 psig pressure rating
- Starter
- DOL (5 to 15 HP)
- Wye-Delta starter (20 to 50 HP)
- Voltage (dependent on selected model)
- 208-230/460/3/60
- 230-460/3/60
- 230/1/60
- 460/3/60
- Low sound enclosure
Tech Specs
Description
The Quincy Compressor QGS Series rotary screw air compressor is available from 5 to 50 HP and can be used in a wide range of applications. The QGS series from 5 to 30 HP is belt-driven and includes an auto tensioning device that provides ease of maintenance and a long belt life, while the 40 to 50 HP compressors come with a gear-driven transmission. The Quincy Compressor QGS Series comes equipped with start/stop controls, an Infologic 2 controller or an Airlogic 2 Touch controller depending on the selected horsepower. All models feature a TEFC drive motor, air-cooled after cooler, low sound enclosure, and 8,000 hours of factory-filled QuinSyn-Plus fluid, with options for a horizontal air receiver and a mounted 39°F dewpoint refrigerated air dryer.
Applications
- Oil and gas
- Construction
- Manufacturing
- HVAC
- Automotive
- Chemical
- Agriculture and mining
- Food and beverage
- Pharmaceutical
Documents
Manuals
- Quincy 5-7.5 Operational Manual (3.2 MB)
- QGS 10-20S Operational Manual (3.7 MB)
- QGS 5-7.5 Parts Manual (3.9 MB)
- QGS 10-20S Parts Manual (3.5 MB)
Spec Sheets
- QGS Brochure (619 KB)
- QGS Datasheet (9.6 MB)
- Quincy QGS 5-7 TMD Dimensional Drawing (164 KB)
- Quincy QGS 10-20S TMD Drawing (207 KB)
- QGS 20-40 Dimensional Drawing with Dryer (176 KB)
Links
Accessories

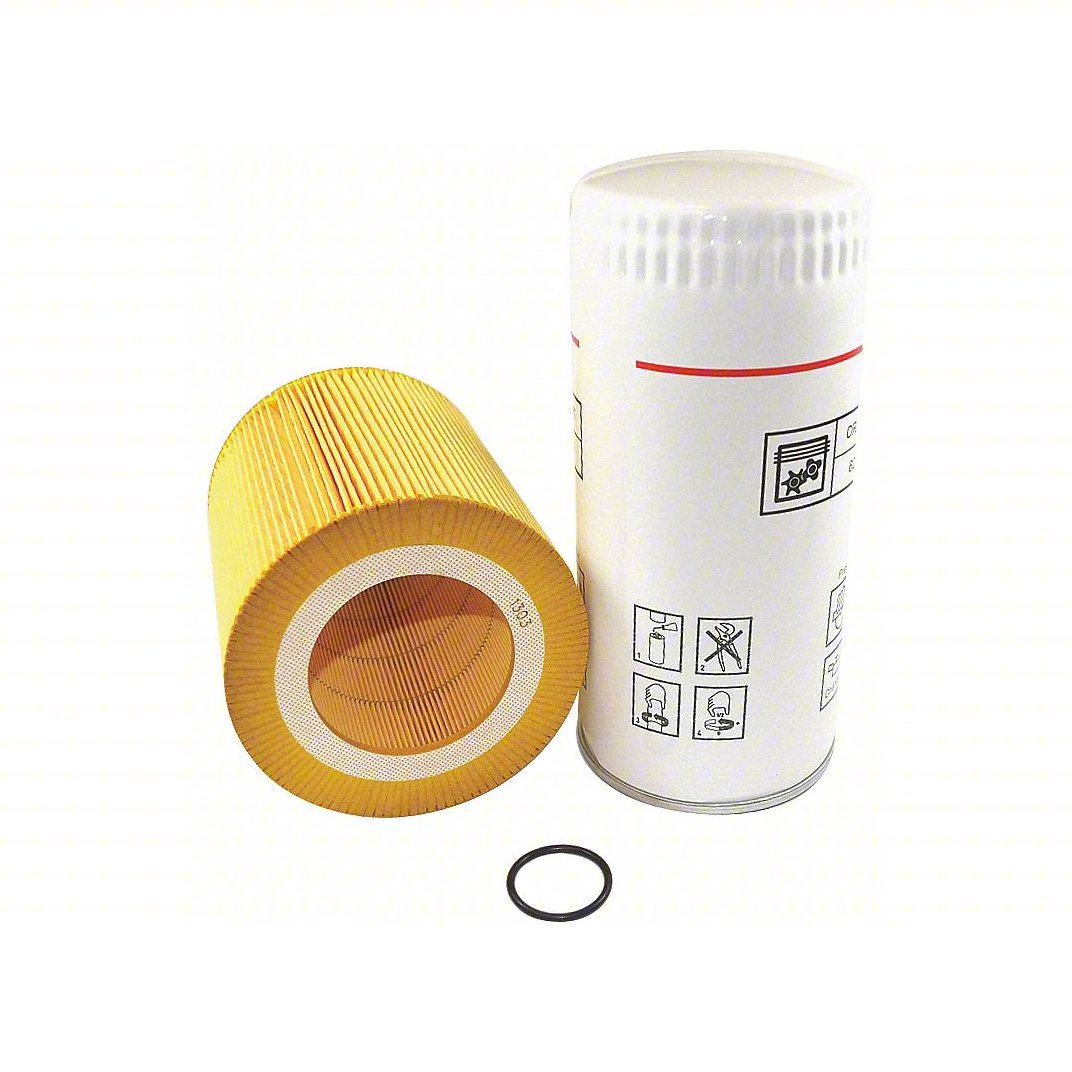

Maintenance Kits
Lubricants
In Stock
Manufacturer Stock
Part Number | Price | Available | |
---|---|---|---|
QGS 15 TMD-3 |
$11,833.26 | 63 in stock | |
QGS 7.5 TMD-1 |
$9,029.49 | 24 in stock | |
QGS 15 TM-3 |
$10,447.62 | 12 in stock | |
QGS 7.5 TMD-3 |
$9,029.49 | 10 in stock | |
QGS 20s TMD-3 |
$17,128.86 | 8 in stock | |
QGS 10 TMD-3 |
$11,642.47 | 6 in stock | |
QGS 5 TMD-1 |
$9,543.64 | 6 in stock | |
QGS 7.5 BM-3 |
$7,396.49 | 6 in stock | |
QGS 7.5 BM-1 |
$7,396.49 | 5 in stock | |
QGS 40 BM-3 |
$20,402.08 | 4 in stock | |
QGS 5 TMD-3 |
$9,543.64 | 4 in stock | |
QGS 7.5 TM-3 |
$8,041.44 | 4 in stock | |
QGS 25 TMD-3 |
$23,118.27 | 3 in stock | |
QGS 20 TM-3 |
$18,345.84 | 2 in stock | |
QGS 10 TM-3 |
$9,403.38 | 1 in stock | |
QGS 20 BM-3 |
$16,491.72 | 1 in stock | |
QGS 20s TM-3 |
$12,152.44 | 1 in stock | |
QGS 25 TM-3 |
$19,860.55 | 1 in stock | |
QGS 30 TM-3 |
$21,409.12 | 1 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Some models in stock". Click here to select options
