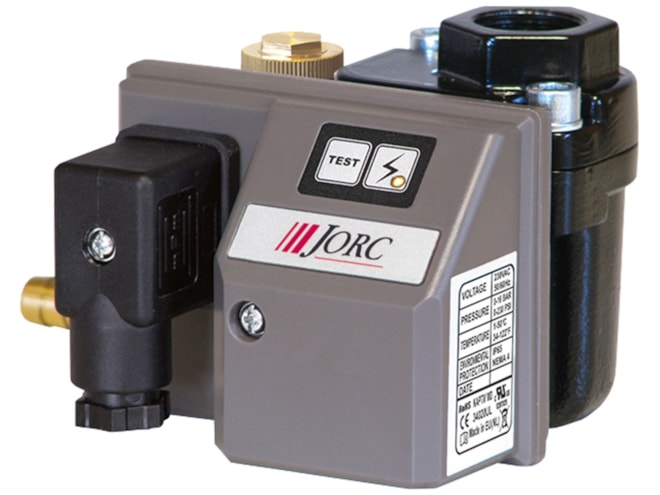

JORC Industrial SMART-GUARD-MINI Series Drain

Electronic zero air loss condensate drain designed for filters and refrigerated dryers up to 350 CFM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $279.80
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Tara Samuel headshot

Tara Samuel

Order Management Specialist - 10 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 0 to 230 PSI pressure range
  • 350 CFM max compressor capacity
  • 1/2" NPT inlet connection
  • 1/4" with hose pipe connector outlet connection
  • Included test feature
  • Integrated mesh strainer
  • 2mm valve orifice
  • 2/2 way, direct acting valve type
  • FPM valve seals
  • DIN 43650-B power connection
  • Aluminum, EP coating housing material
  • NEMA4 (IP65) protection

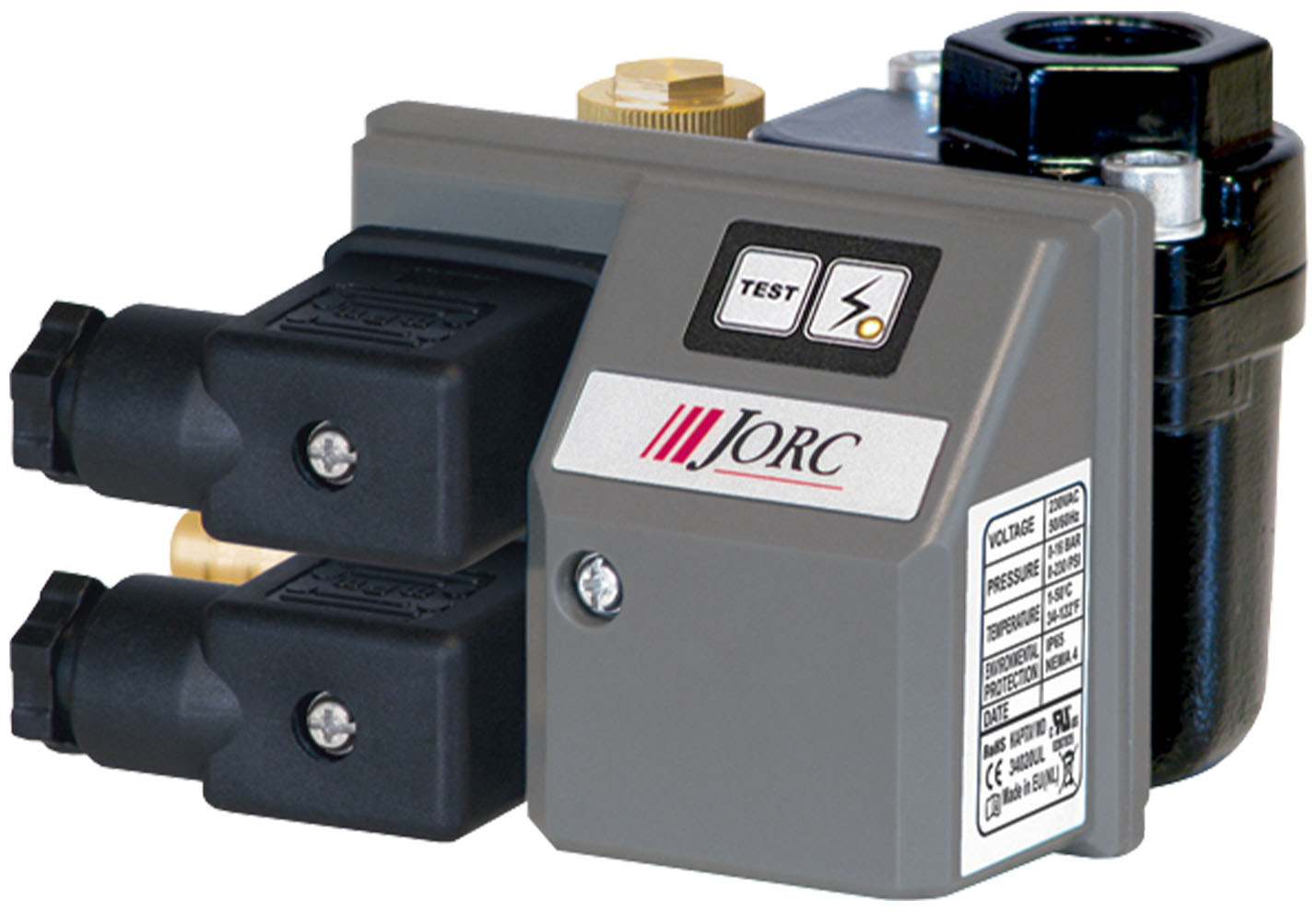

The JORC Industrial SMART-GUARD-MINI Series Drain is ideal for filters and refrigerated dryers up to 350 CFM, providing effective and efficient condensate removal in an extremely small and lightweight package. The 2/2-way capacitive level sensor operates a direct acting valve to discharge condensate without losing any valuable compressed air. An integrated mesh strainer protects the valve from blockage and a test button provides immediate verification of drain function. The internal sensor automatically detects potential blockages and will pulsate the valve to attempt to clear. Available with or without an alarm. The alarm options are normally open contact and normally closed contact.
