VPInstruments VPFlowScope DP Flow Meter

Differential pressure flow meter designed for hot, saturated compressed air flow measurements.

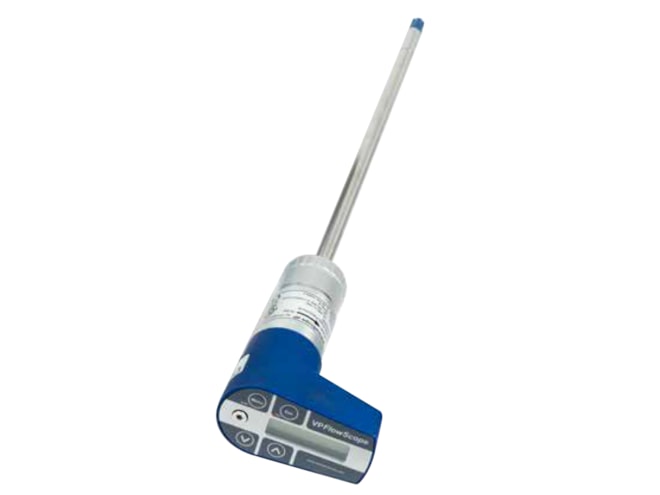

VPInstruments VPFlowScope DP Flow Meter with Display
VPInstruments VPFlowScope DP Flow Meter with Connector Cap

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

Starting Price: $3,969.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

${{ calcCost | formatCurrency }}

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

By VPInstruments
FREE Shipping
Factory Warranty and Support Available
Call for availability

Don Mazanec

Senior Applications Specialist - 4 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

65 to 650 SFPS flow rate
0 to 250 PSIG pressure range
2 to 20" pipe sizes
-40 to 302°F temperature range
Gas types:
- Air (dry and saturated)
- Nitrogen
- Oxygen
- Vacuum
Outputs:
- RS485 (Modbus RTU) digital
- 4-20 mA analog
15" probe length
12-24 VDC
CE, UL/CUL approvals

The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has an LCD display that provides real-time information on the dP measurement. In combination with the built-in data logger, this enables you to make recordings for certain periods.

Other

VPInstruments VPFlowScope DP Flow Meter Brochure (923 KB)

Manuals

VPInstruments VPFlowScope DP Flow Meter Manual (1022 KB)
