GlobalVac & Air Sub Slab Extraction Blower Skid

Skid mounted blower package complete with AIRTECH0.3 HP 30 CFM blower, galvanized steel piping system, control panel and enclosure.

Call for pricing
Available Payment Methods
Request Quick Quote
View Company Reviews
Part Number
  • SSDS-Series
Highlights...

Features

  • AIRTECH Model 3BA1100-7AT06 Regenerative Blower:
    • 0.3 Hp, 230 VAC, 3-Ph, 60 Hz, TEFC motor
    • 30 CFM flow rated
  • Skid Base with Dura-blok Rooftop Mounting Blocks
  • Blower Sound Reduction Enclosure with Ventilation Fan
  • Galvanized Steel piping system:
    • 2" Inlet Filter (Solberg CSL)
    • 2" vacuum relief valve
    • Inlet Vacuum Indicator with 1/4" sample port
    • 1 dilution gate valve with filter/silencer
    • 1-1/2" discharge stack [3ft] with vent cap
  • UL-508 listed power and control panel with NEMA 3R enclosure
  • Blower off / thermal overload faults alarm
  • Low vacuum level alarm

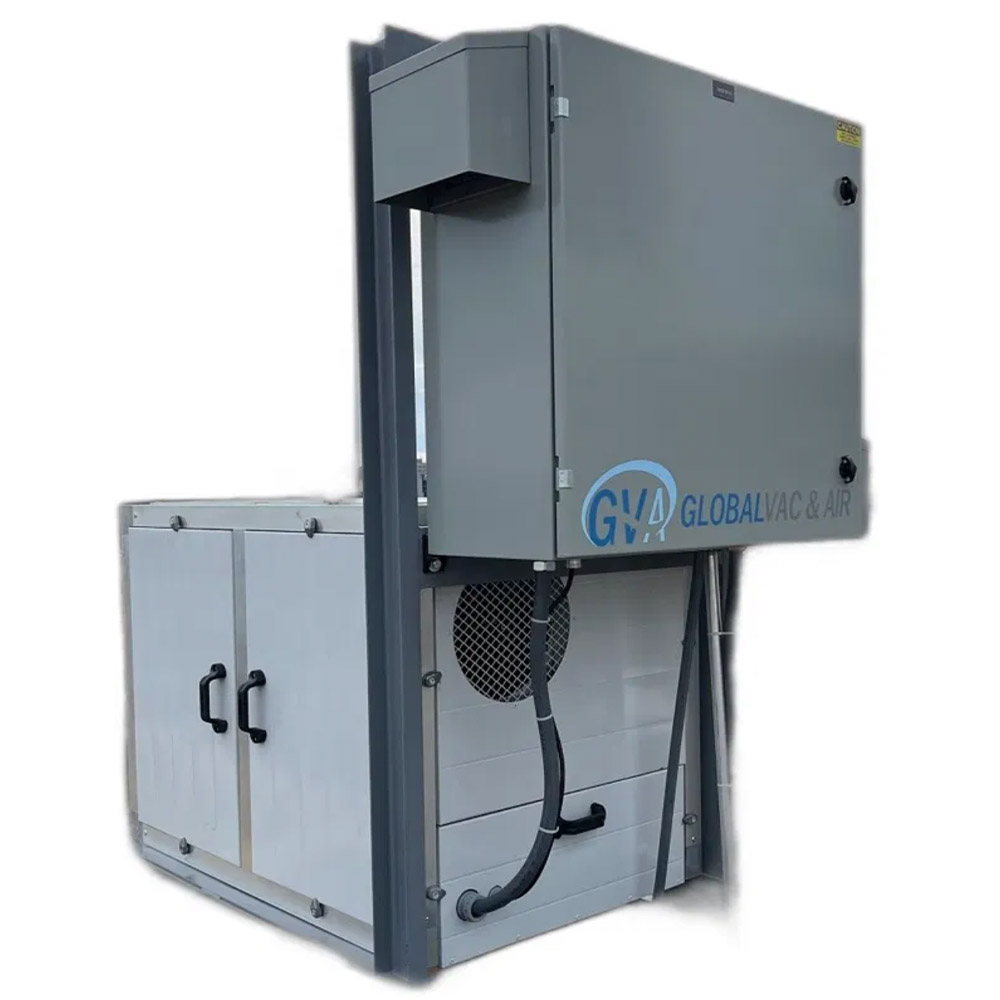

The GlobalVac & Air Sub Slab Extraction Blower Skid is a fully integrated blower system that combines a high-performance regenerative blower, sound-reduction enclosure, galvanized steel piping, filtration, vacuum monitoring, and a UL-508 listed control panel into a durable, ready-to-install system.

At the heart of the system is an AIRTECH Model 3BA1100-7AT06 regenerative blower, featuring a 0.3 HP, 230 VAC, three-phase, 60 Hz TEFC motor and rated for 30 CFM airflow. The blower is mounted on a sturdy skid base equipped with Dura-Blok rooftop mounting blocks, providing a stable installation platform while helping minimize vibration transmission.
