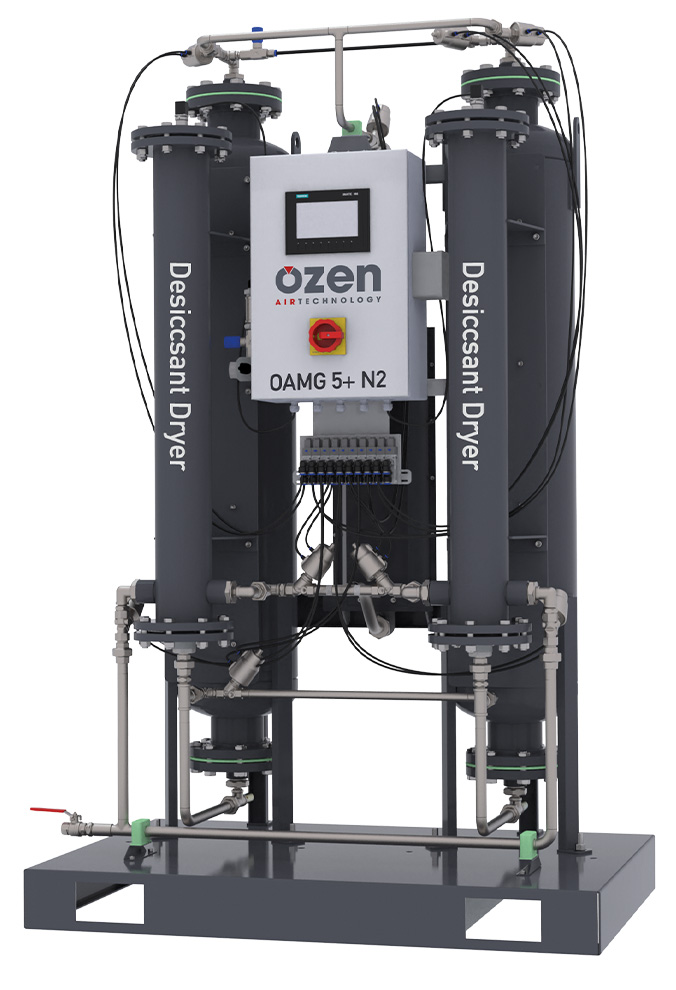

OZEN OAMG+ N2 Serial Pressure Swing Adsorption Nitrogen Generator

95% to 99.999% air purity, up to 783.5 SCFM, 2 year warranty.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 70 to 145 PSIG inlet pressure range
  • 58 to 130 PSIG outlet pressure range
  • 100-230V/1ph/50/60Hz power, 120W max
  • -40ºC Dew Point Nitrogen Output
  • Required clean, dry, compressed air specifications: ISO 8573 Class 1.4.1 or better
  • Integrated desiccant Air Dryer System
  • Integrated inlet filtration: 0.5 and 0.01 ppm
  • Integrated outlet filtration: 5 microns
  • Carbon Molecular Sieve from Kuraray (JAPAN)
  • Siemens PLC with touch screen colored HMI
  • LAN/Ethernet connections
  • Automatic smart maintenance and service alarms
  • 24/7 pressure, purity and consumption chart records
  • Zirconium type oxygen/nitrogen sensor
  • Standards Compliance:
    • ISO 10002:2018
    • ISO 13485:2016
    • ISO 14001:2015
    • ISO 27001:2013
    • ISO 45001:2018
    • ISO 9001:2015
    • 93/42 EEC
    • ASME
    • CE
    • UL

The OZEN OAMG+ N2 Serial Pressure Swing Adsorption Nitrogen Generator isolates nitrogen molecules from other molecules in compressed air, resulting in high purity nitrogen gas at the outlet of the generator. The pressure swing adsorption process for the generation of enriched nitrogen gas from ambient air utilizes the ability of a synthetic carbon molecular sieve to absorb mainly oxygen. While oxygen concentrates in the pores of the carbon molecular sieve, Nitrogen is produced as a product gas.

Compressed air often contains various impurities that can compromise the separation process. The OAMG+ N2 features Serial Pressure Swing Adsorption (S-PSA) technology that includes two-stage PSA cycles. The first stage cycle involves purifying compressed air from all impurities and unwanted gases, while the second stage cycle separates nitrogen gas from other gases. The process ensures that all impurities and unwanted gases are removed from the nitrogen gas, which is then stored in its pure form.

Applications

  • Food and Beverage
  • Electronics Manufacturing
  • Laser Cutting
  • Pharmaceutical and Biotechnology
  • Chemical Industry
  • Metallurgy and Heat Treatment
  • Oil and Gas / Petrochemical
  • Aerospace and Automotive
  • Research and Laboratory
