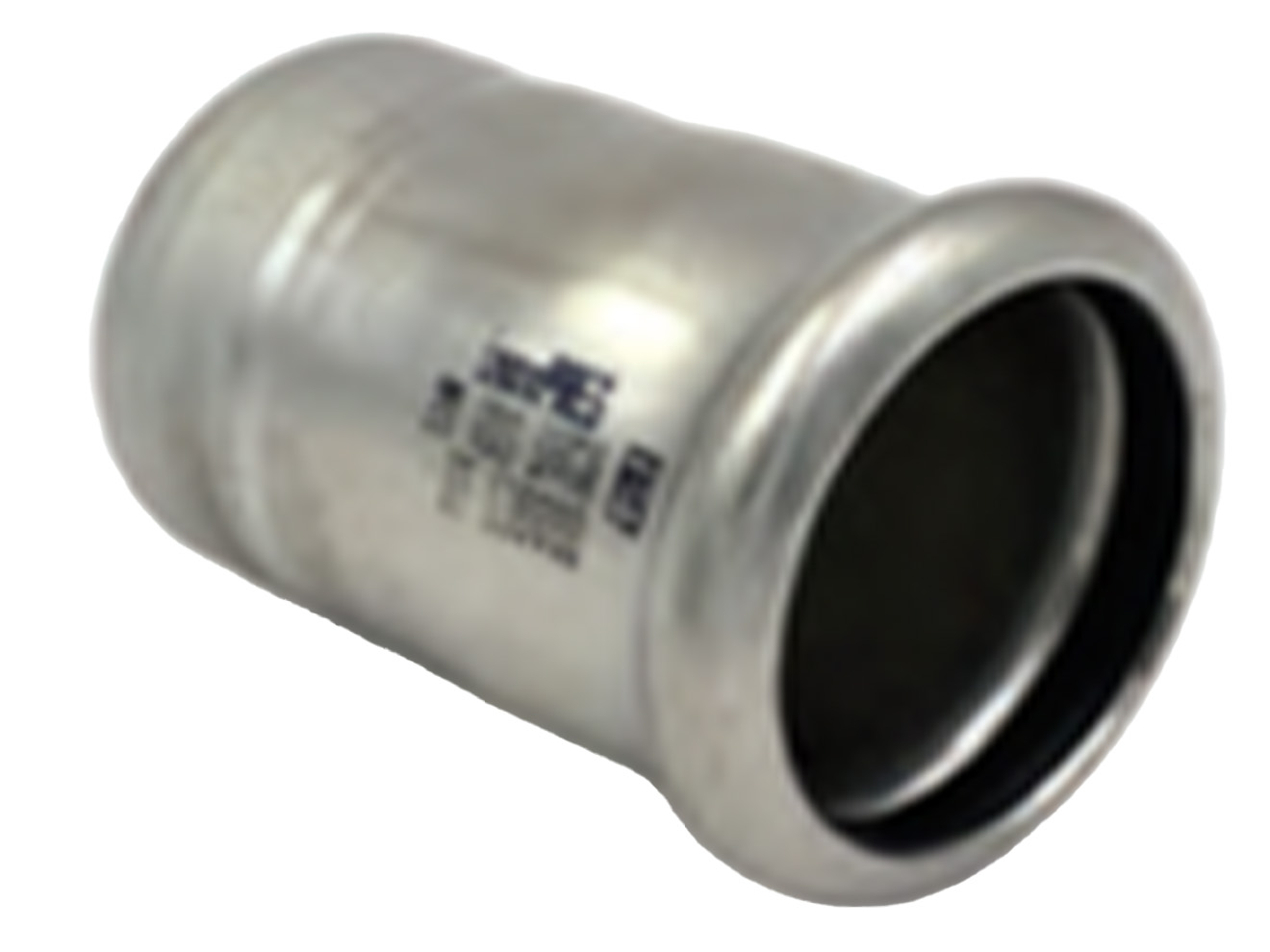

Applied System Technologies TruPress End Stop

15 to 168mm sizes, 316L stainless steel, EPDM seal rings.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 15 to 168mm pipe diameters
  • 316L Stainless Steel construction
  • Black EPDM seal ring
  • 232 PSI max pressure
  • 428°F max temperature

The Applied System Technologies TruPress End Stop is manufactured using high-alloyed austenitic 316L stainless steel. The formed ends of the press fittings are fitted with a black EPDM seal ring for standard application. The press connection is made by inserting the pipe into the press fitting to the marked insertion depth. The connection is created by pressing using an approved pressing tool.

Applications:

  • Compressed air
  • Nitrogen
  • Argon
  • Inert gas
  • Saturated steam
  • Vacuum
  • Drinking water
  • Heating
  • Extinguishing water
  • Sprinkler systems
  • Cooling
  • Solar
