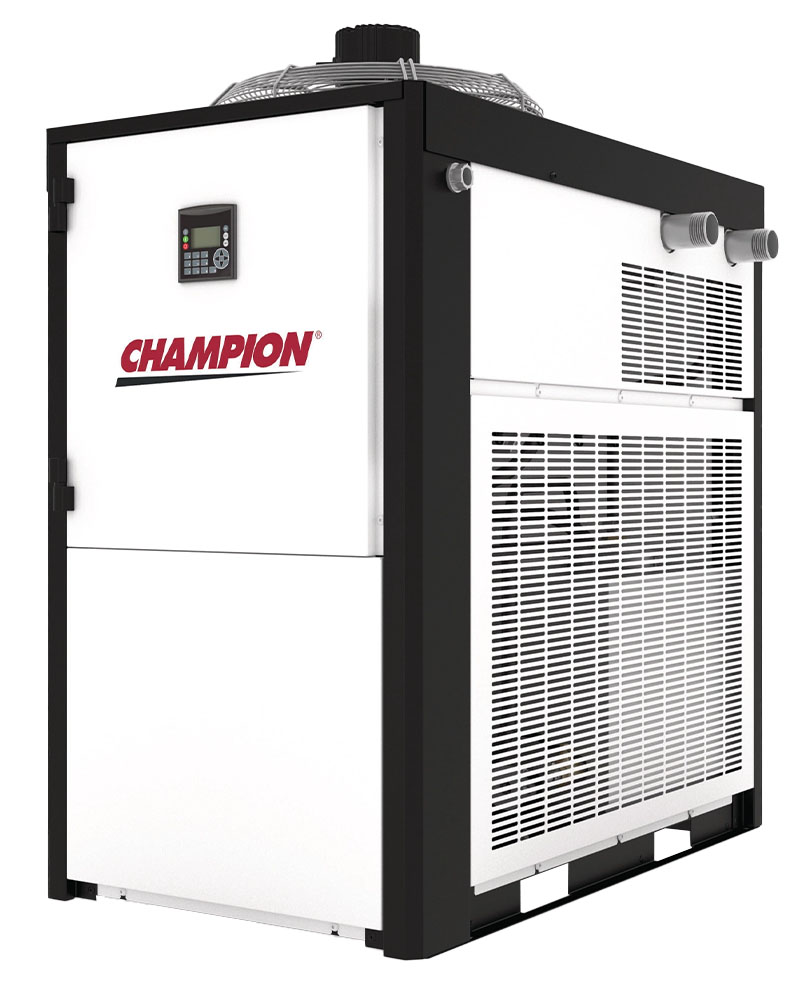

Champion XCCYA Series Cycling Refrigerated Dryer

10 to 800 CFM cycling dryer, pre and post filers standard, 200 PSIG max operating pressure.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 10 to 800 SCFM
  • NEMA 1 Standard
    • NEMA 4 configurations available (200 to 250 CFM only)
  • Filtration:
    • 300 to 800 CFM models include integrated pre- and post-filtration
    • 10 to 250 CFM models include ship-loose filters
  • Maximum Inlet Air Temperature: 120°F
  • Maximum Operating Pressure: 200 PSIG
  • Reliable Solenoid Drain as standard
    • Optional no-loss drain + monitoring upgrade
  • Performance Testing: ISO Guidelines, CAGI ADF-100
  • ETL-certified, UL 60335-1, UL 60335-2-40, CSA 22.2 #60335-1, CSA 22.2 #60335-2-40

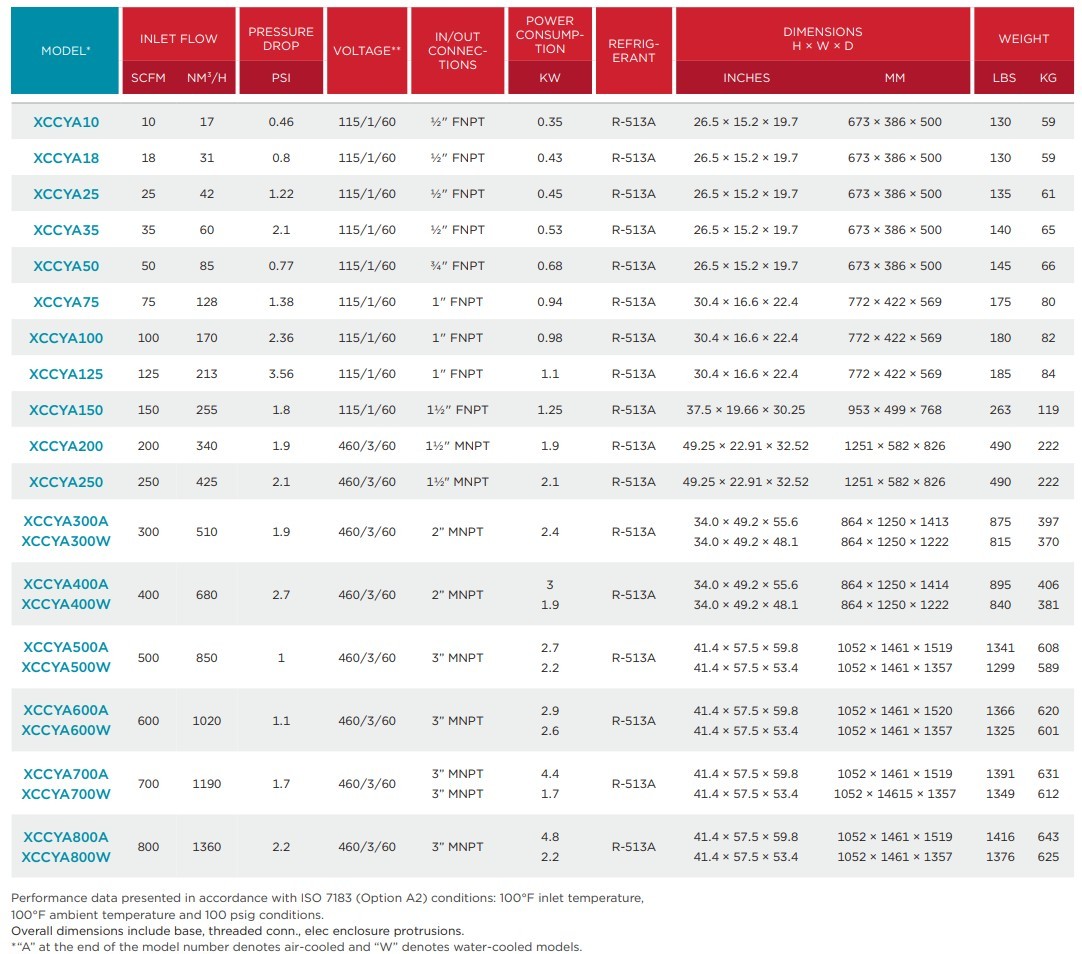

Tech Specs

Champion XCCYA Series Thermal Mass Cycling Refrigerated Dryer Tech Specs

The Champion XCCYA Series Thermal Mass Cycling Refrigerated Dryer incorporates innovative features that make it a reliable, and energy efficient dryer. The XCCYA Series provides significant savings because it does not waste energy costs through continuous operation of its refrigeration system, as do traditional non-cycling dryers. Each component has been designed to provide durability plus maximum energy efficiency.

The XCCYA Series utilizes R513A refrigerant, achieving an 85% reduction in Global Warming Potential (GWP) for increased sustainability. The net effect is a GWP of less than 700.
