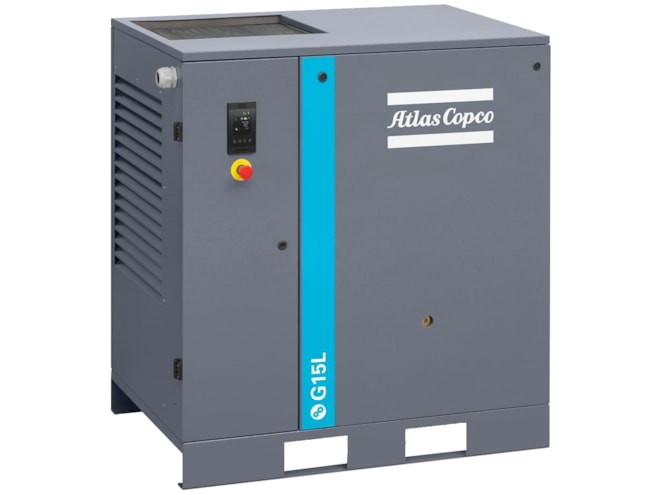

Atlas Copco G15L-22D Oil-Injected 20 HP Rotary Screw Air Compressor, With Dryer

20 HP, 69.3 to 93.2 CFM, 100 to 175 PSI, 208-230/460/3/60, Base mount, with refrigerated air dryer. View other configurations.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 20 HP
  • 69.3 to 93.2 CFM
  • 100 to 175 PSI
  • 208-230/460/3/60
  • Base mount
  • 46°C/115°F maximum ambient temperature
  • Integrated Elektronikon Nano monitoring system
View other configurations.

The Atlas Copco G15L-22D Oil-Injected 20 HP Rotary Screw Air Compressor, With Dryer is designed for a 100% continuous duty cycle, with a belt-driven element providing for quieter operation. The unit is small enough to place against a wall or in a corner, negating the need for a separate compressor room.

The integrated air dryer cools compressed air and removes any moisture before it enters the compressed air network. This prevents rust in the compressed air piping and avoids damage to the air tools.

The integrated Elektronikon Nano monitoring system allows for remote control and monitoring, along with real-time service alerts via computer or mobile device. The Nano's DSS (Delayed Second Stop) feature stops the compressor's motor whenever possible. The controller maintains the desired system pressure while minimizing the motor run time to keep energy consumption at a minimum.
