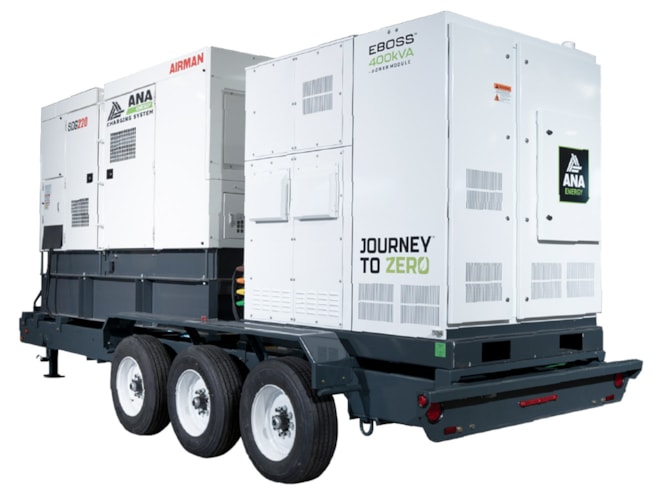

ANA Energy EBOSS 400 kVA Hybrid System

400 kVA output, 125 kWh Lithium Titanate Oxide (LTO) battery system, Airman SDG220 generator.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $772,621.18
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • Airman SDG220 generator: (Max continuous power output)
    • 210 kVA / 168 kW 3-phase output
    • 2.4 kW x 2 1-phase output
    • 120V/208V/277V/480V simultaneous 3-phase voltage
    • 120V simultaneous 1-phase voltage
  • 125 kWh Lithium Titanate Oxide (LTO) battery
    • 320 kW inverter output max
  • -22°F to 130°F operating temperature

The ANA Energy EBOSS 400 kVA Hybrid System is an energy and fuel-efficient solution that reduces fuel consumption, maintenance costs, and greenhouse gas emissions combining an advanced Lithium Titanate Oxide (LTO) battery technology with the dependable power of a Airman SDG220 generator. Featuring a 125-kWh battery with a 20-year life cycle at a 3-kW average load, the EBOSS 400 provides maximum sustainability. Designed for versatility, it offers simultaneous three-phase and single-phase output voltages, an all-in-one trailer, telematics, and a 10” Touchscreen display.
