Hertz HNG Series Nitrogen Generator
Carbon Molecular Sieve Nitrogen generator with purity available up to ~99.999%.
Images may not represent all possible configurations of this product.
Overview
Features
- Compact design, full automated operations
- Crouzet Touch Screen PLC controller
- Nitrogen Purity 95% to ~99.999% is available
- Lower air-to-nitrogen (A/N) ratios
- Durable piston valves

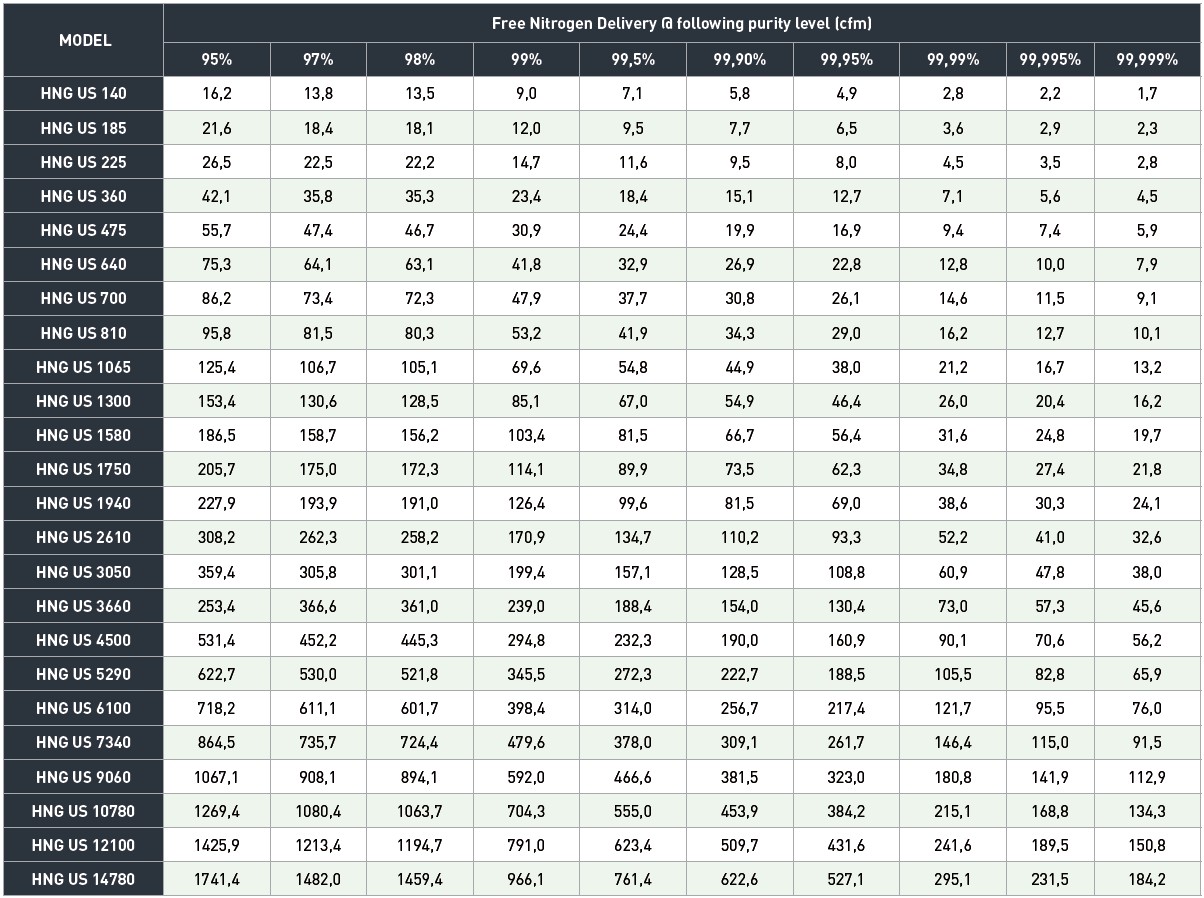

Tech Specs
Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.
Description
The Hertz HNG Series is a nitrogen generator line that utilizes a Carbon Molecular Sieve (CMS) that allows nitrogen to pass through the line by adsorbing oxygen and water vapor molecules under a certain pressure. The nitrogen generators produce nitrogen gas through two adsorption tanks filled with CMS. Purity levels can be between 95% to ~99.999%, depending on the areas of use. The generators are fitted with piston valves and a new design silencer that promotes lower noise levels for both pressurization and purge.
