• 135 HP
  • 425 & 375 CFM capacity
  • 100 & 150 PSIG rated operating pressure
  • 60 gallon fuel tank capacity
  • 1" NPT connection
  • **Freight is additional, flat bed delivery, ground equipment needed for removal**

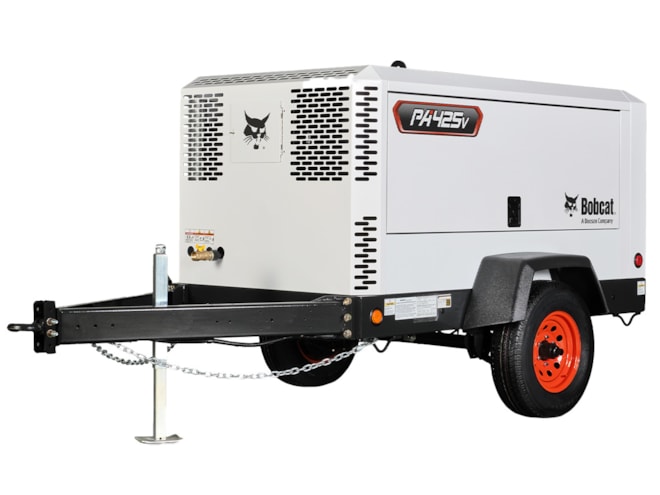

The Bobcat PA425V Diesel Driven Rotary Screw Air Compressor is powered by a Tier 4 Final compliant Cummins engine and engineered with DOC and SCR emissions technology. A newly redesigned Mini-Port full gauge control panel displays engine and airend temperature, pressure, and the percentage of fan speed and engine load. From the newly redesigned control panel, the operator is able to select language and other display for an improved operator interface. The operator also has the ability to change the pressure and flow settings during compressor operation, either creating low airflow with high pressure or high airflow with low pressure.

Servicing the PA425V air compressor is simple thanks to a simplified wiring and piping layout and service points that are easily accessible without having to remove the durable enclosure. Automatic shutdowns, relative to several critical operational parameters, help to avoid costly damage and subsequent repairs.
