Overview

Features

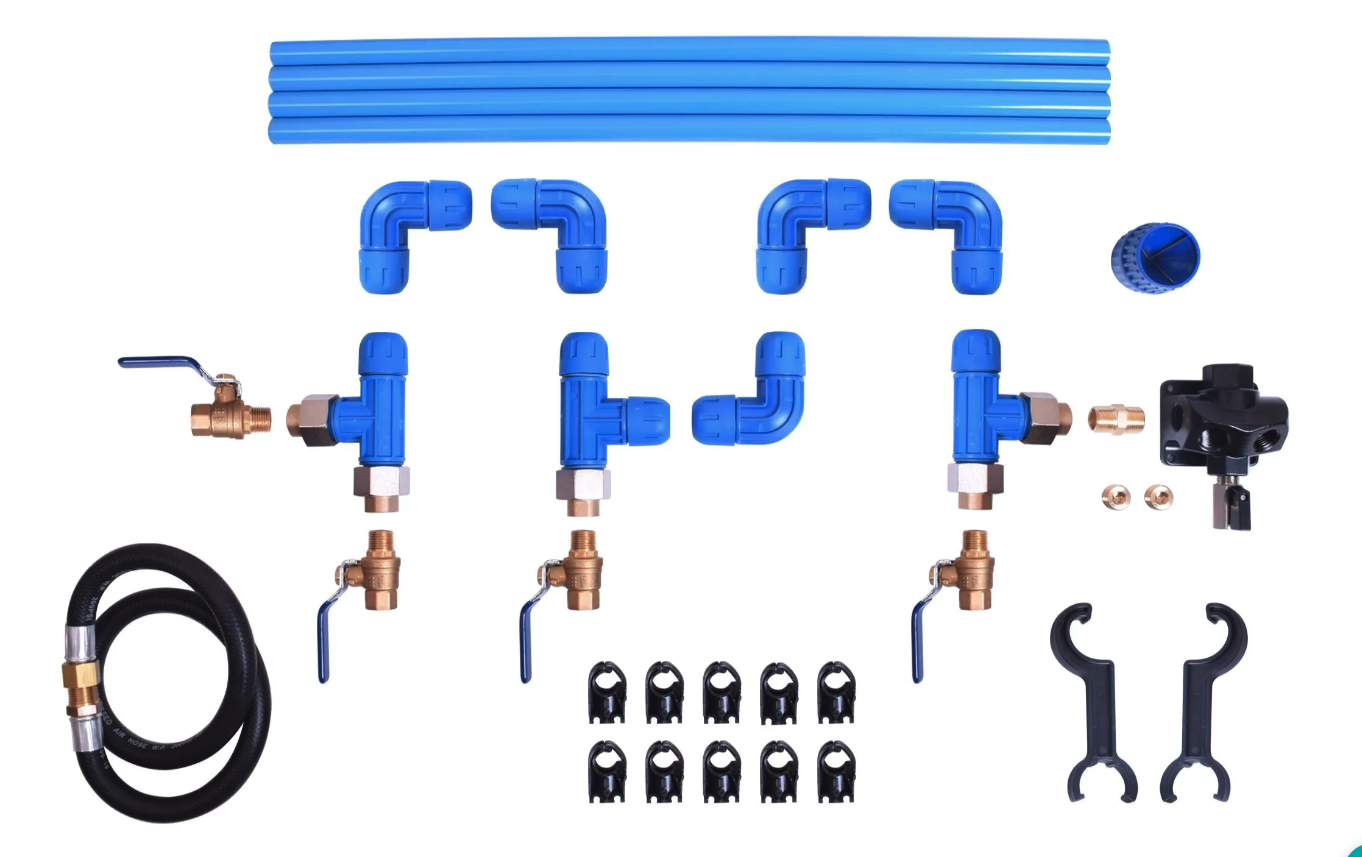

  • 3/4″ FastPipe Cooling Kit Includes:
    • (4) 3/4″ X 7’6″ Pipe
    • (5) 3/4″ Elbows
    • (3) 3/4″ Reducing Tee x 1/2″ FNPT
    • (2) 3/4″ Large Hex Nut
    • (2) 3/4″ Insert Gasket
    • (2) 3/4″ Brass Insert x 1/2″ FNPT
    • (4) 1/2″ NPT Male x Female Brass Ball Valve
    • (1) 1/2″ NPT Brass Hex Nipple
    • (1)Wall Outlet w 1/2″ FNPT Inlet
    • (1) Deburr Tool
    • (2) 3/4″ Spanner Wrench
    • (1) 10 3/4″ Wall Clips (10 PACK)
    • (1) 1/2″ x 3FT Compressor Jumper Hose
  • 1″ FastPipe Cooling Kit Includes:
    • (4) 1″ X 7’6″ Pipe
    • (5) 1″ Elbows
    • (3) 1″ Reducing Tee x 1/2″ FNPT
    • (2) 1″ Large Hex Nut
    • (2) 1″ Insert Gasket
    • (2) 1″ Brass Insert x 3/4″ FNPT
    • (1) 3/4″ NPT Male x Female Brass Ball Valve
    • (3) 1/2″ NPT Male x Female Brass Ball Valve
    • (1) 3/4″ x 1/2″ NPT Brass Hex Nipple
    • (1) Wall Outlet w 3/4″ FNPT Inlet
    • (1) Deburr Tool
    • (2) 1″ Spanner Wrench
    • (1) 10 1″ Wall Clips (10 PACK)
    • (1) 3/4″ x 3FT Compressor Jumper Hose

Description

FASTPIPE COOLING KITS

  • Easy to install, versatile solution to eliminate excess moisture in an air system
  • Hot air flows into the cooling loop and travels a total distance of approximately 27 feet, cooling the air and causing water vapor to condense
  • Rectangular construction allows for easy draining through the ball valves
  • Inexpensive compared to the cost of a powered air dryer or after cooler
