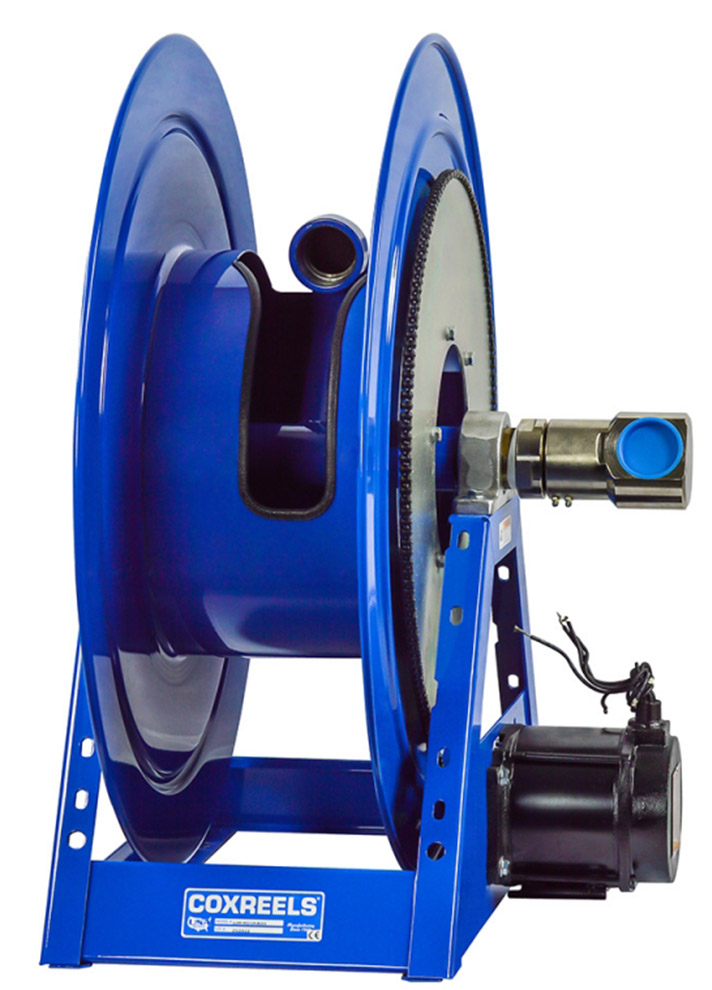

Coxreels 1195 Series Motorized Hose Reel

6 motor options, 1000 or 1500 PSI operating pressure, supports 2" ID hose, 50' to 125' hose capacity.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $2,142.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Murphy headshot

Matt Murphy

Senior Applications Specialist - 15 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 1000 or 1500 PSI working pressure
  • CNC welded 12 gauge steel a-frame
  • 6 motor options:
    • Cast iron 6-vane air motor
    • 115 VAC motor, 1/2 HP
    • 24 VDC motor, 1/2 HP
    • 12 VDC motor, 1/2 HP
    • 230 VAC motor, 1/2 HP
    • Hydraulic rewind
  • Swivels:
    • In-line electroless nickel-plated steel, full-flow NPT swivel (1000 PSI)
    • Electroless nickel-plated steel 90° full-flow NPT swivel (1500 PSI)
  • Permanently lubricated bearings
  • 2-year limited manufacturer warranty
  • CPC powder coat finish
  • Hose not included

The Coxreels 1195 Series Motorized Hose Reel is perfect for delivering large volumes of liquid over long distances. Its low-profile outlet riser and open drum design ensure that the hose is not crimped and is wrapped smoothly. The all-welded "A" frame base is sturdy and can bear the weight of the hose, making it ideal for use in mobile applications. You can choose the 1500 PSI model which has an electroless nickel-plated steel 90° full-flow NPT swivel inlet.
