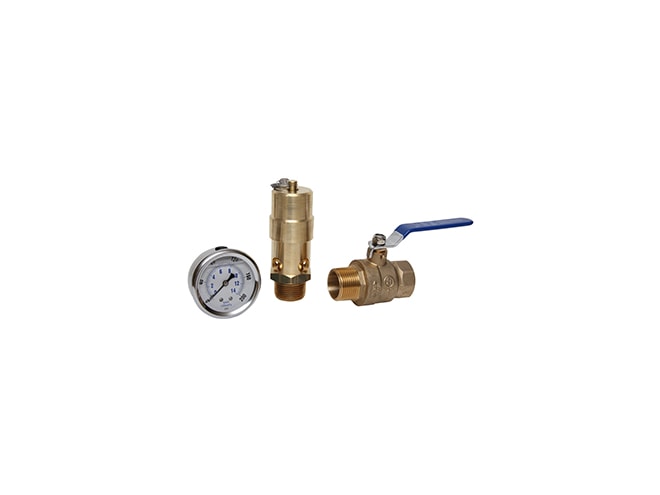

Midwest-Control Tank Kit - Safety Valve, LF CBM Gauge, and Ball Valve
1/2" Safety Valve, 200 PSI, 358 SCFM, 2.5" LF CBM Gauge 300 PSI, and 1/2" FPT x MPT Ball Valve MxF.
Contact an Expert
Henry Santos
Senior Applications Specialist - 2 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- 1/2" Safety Valve
- 200 PSI
- 358 SCFM
- 2.5" LF CBM Gauge 300 PSI
- 1/2" FPT x MPT Ball Valve MxF
Description
Custom built tank kits for your specific application. This kit contains a safety valve, gauge, and ball valve.
Safety Valve:
- Set Pressure Tolerances: ± 3% of Set Pressure
- Maximum Temperature: 250 F
- Construction: All Brass With Zinc Plated Music Wire Spring
- Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure
- Stamped With the UV and NB Symbols
- Loc-Tite Vibra Seal Standard
Liquid Filled Gauge
- Built-In Snubber Dampens the Effect of Pulsation and Vibration
- Stainless Steel Case and Bezel
- Copper Alloy Wetted Parts
- Polycarbonate Lens
- Liquid Filled
- Accuracy : 2-1-2% of Span ASME B40.1 Grade A
- Dual Scale: PSI/Bar (x 100=kPa) Standard
- Ambient Temperature: Filled: 30 F to 160 F
- Design Meets or Exceeds ASME B40.100 Pressure Gauge Standard
Ball Valve
- UL, CSA/CUS and FM Approved
- 600 PSI CWP 150 WSP Service
- Suitable for Vacuum Service to 29.9" Hg
- Full Port
- Temperature Range: -20 F to 365 F
- Forged Brass Body
- Blow Out Proof Brass Stem
- Chrome-Plated Brass Ball
- PTFE Ball Seat and Packing Nut
- Steel Handle w/Vinyl Grip
- ISO Registered Factory
- MSS SP-110 Approved
- RoHS Compliant
