Overview

Features

  • 232 PSI max pressure
  • 3500 SCFM max compressor capacity
  • Three 1/2" NPT inlet connections
  • 1/4" NPT outlet connection
  • Included test feature
  • Alarm digital output
  • Integrated mesh strainer
  • NEMA4 (IP65) protection
  • 110 VAC and 24 VAC options available
    • 110 VAC version includes 6ft plug

Description

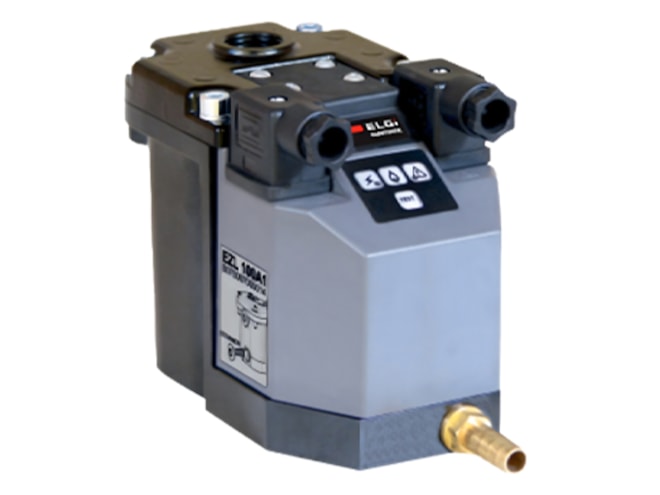

The ELGi EZL 100 Zero Loss Drain is a highly efficient solution designed for the effective removal of condensate and moisture from compressed air systems. The EZL 100 cand handle compressors up to 3500 SCFM.

The EZL 100 features a sophisticated design that ensures the elimination of condensate without any loss of compressed air. This unique feature sets it apart from traditional drain valves that can inadvertently waste compressed air during the condensate removal process. By preventing air loss, the EZL 100 helps to conserve energy and reduce operational costs, making it an environmentally friendly and cost-effective solution.
