Leybold NEO D Series Two-Stage Rotary Vane Vacuum Pump

Oil-sealed, two-stage vacuum pump ideal for medium vacuum applications.

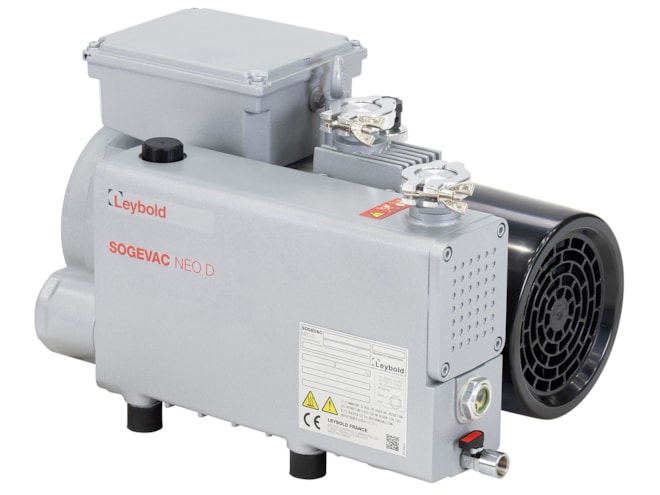

Leybold NEO D Series Two-Stage Rotary Vane Vacuum Pump - NEO D 16

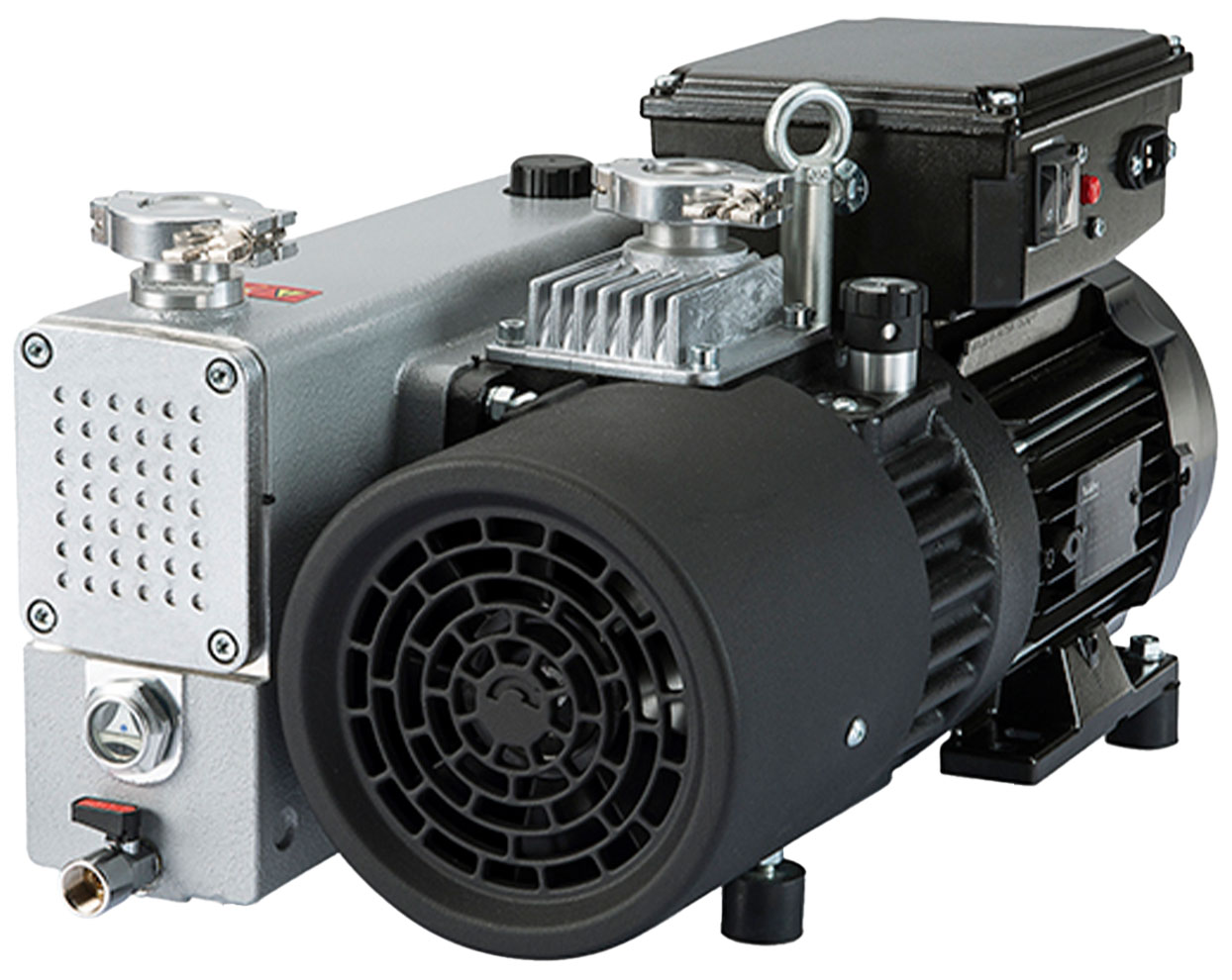

Leybold NEO D Series Two-Stage Rotary Vane Vacuum Pump - NEO D 25

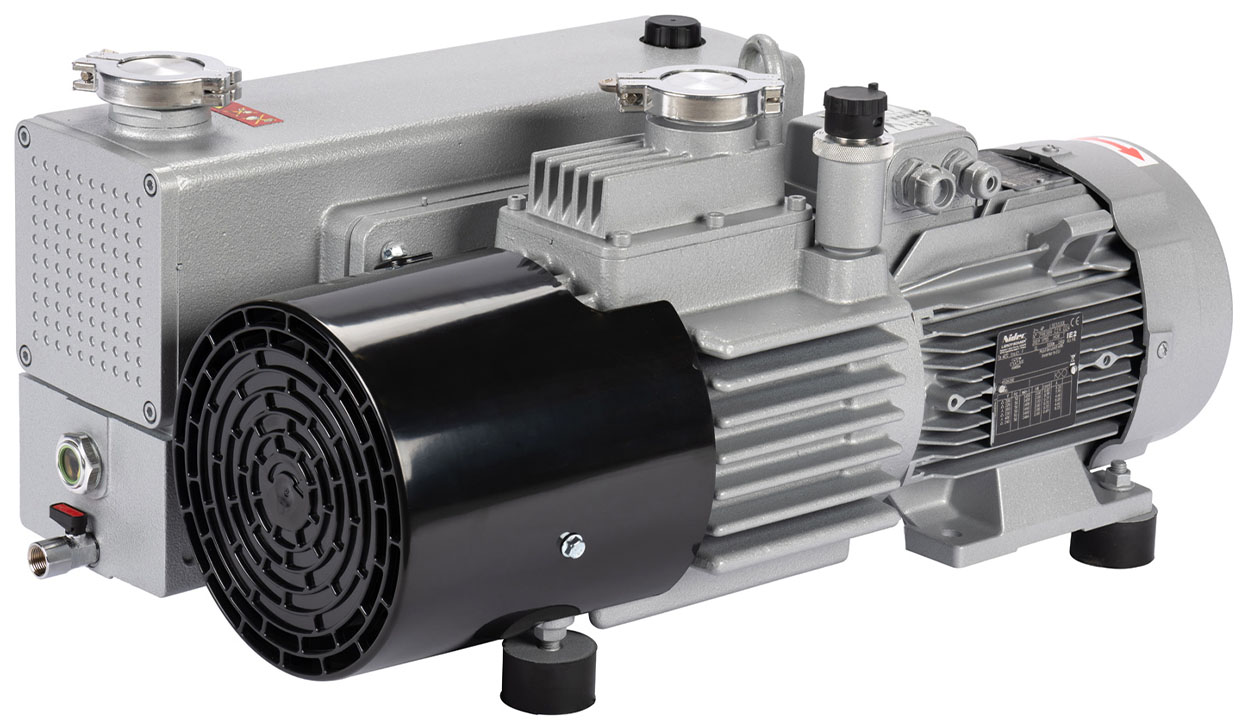

Leybold NEO D Series Two-Stage Rotary Vane Vacuum Pump - NEO D 40/65

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

Starting Price: $5,108.00

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

${{ calcCost | formatCurrency }}

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

By Leybold
FREE Shipping
Factory Warranty and Support Available
Usually ships in 6 to 8 weeks

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

13.5, 20, 33, and 52.4 CFM pump speeds available
Noise-reducing enclosure
Built-in exhaust filter inside oil casing
Up to 3 years maintenance-free operation

The Leybold NEO D Series Two-Stage Rotary Vane Vacuum Pump is designed for industrial and analytical applications. Its smooth and quiet operation, along with lower emissions, make it an ideal choice for processes that depend on continuous vacuum.

NEO D pumps are double-stage oil-sealed rotary vane pumps. Oil is injected into the pump chamber for sealing, lubrication, and cooling, and is recycled from the oil reservoir and filtered. The lubrication system allows continuous operation at high intake pressures, making the NEO D pumps versatile to pump from the atmosphere down to ultimate pressure. The oil carried with the process gas is separated in the oil box and then in the integrated exhaust filters where the fine oil mist is trapped. The separating system lowers exhaust emissions and delivers a cleaner working environment, free of oil mist (≤1 ppm).
