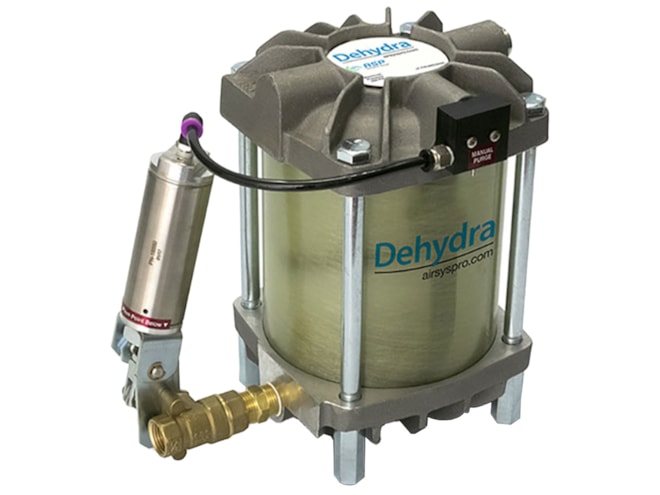

Air System Products Dehydra Zero Loss Drain

Fully automatic turn-key design, zero loss drain that requires no electricity.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $1,058.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Tara Samuel headshot

Tara Samuel

Order Management Specialist - 10 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Two 1/2″ NPT inlet connections
  • 1/2″ NPT outlet connection
  • 250 PSI pressure rating
    • 450 PSI option available
  • 52 ounces per cycle discharge
  • Materials:
    • Composite reservoir
    • Aluminum heads
    • Bronze valve with stainless steel ball and stem
    • Poly float
    • Viton seal

The Air System Products Dehydra Zero Loss Drain is designed to be easily installed, making it a convenient choice for various applications. With no need for an external power utility, it offers both flexibility and cost-effectiveness. Maintenance becomes hassle-free, as the absence of strainers eliminates the need for regular cleaning. The incorporation of an easy-to-see condensate level "quick check" feature enhances operational efficiency. The Dehydra design facilitates rapid discharge, safeguarding against potential plugging by contaminants. The Dehydra can be implemented in a variety of applications across various components such as aftercoolers, receivers, dryers, filters, or drip legs.

Air System Products Dehydra Zero Loss Drain End Cap
Air System Products Dehydra Zero Loss Drain End Cap

Replacement top or bottom end cap for the Air System Products Dehydra Zero Loss Drain.

Starting at $271.00
Air System Products PN-10200 Dehydra Zero Loss Drain Replacement Wall
Air System Products PN-10200 Dehydra Zero Loss Drain Replacement Wall

Replacement wall assembly for the Air System Products Dehydra Zero Loss Drain.

$147.00
Air System Products PN-15300 Dehydra Zero Loss Drain End Cap Seal
Air System Products PN-15300 Dehydra Zero Loss Drain End Cap Seal

Replacement seals for the Air System Products Dehydra Zero Loss Drain End Caps.

$8.00
Air System Products Dehydra Zero Loss Drain Hardware
Air System Products Dehydra Zero Loss Drain Hardware

Replacement tiedown bolts and nuts for the Air System Products Dehydra Zero Loss Drain.

Starting at $12.00
Air System Products PN-12199 Dehydra Zero Loss Drain Test Block Assembly
Air System Products PN-12199 Dehydra Zero Loss Drain Test Block Assembly

Complete test block assembly for the Air System Products Dehydra Zero Loss Drain.

$186.00
Air System Products PN-11099 Dehydra Zero Loss Drain Pilot Trigger Assembly
Air System Products PN-11099 Dehydra Zero Loss Drain Pilot Trigger Assembly

Complete pilot trigger assembly for the Air System Products Dehydra Zero Loss Drain.

$205.00
Air System Products Dehydra Zero Loss Drain Float Assembly
Air System Products Dehydra Zero Loss Drain Float Assembly

Replacement float assembly for the Air System Products Dehydra Zero Loss Drain.

Starting at $40.00
Air System Products RDP-FILTER Dehydra Zero Loss Drain Air Filter
Air System Products RDP-FILTER Dehydra Zero Loss Drain Air Filter

Replacement air filter for the Air System Products Dehydra Zero Loss Drain.

$29.00
Air System Products PN-15555 Dehydra Zero Loss Drain Actuator Assembly
Air System Products PN-15555 Dehydra Zero Loss Drain Actuator Assembly

Replacement air actuator assembly for the Air System Products Dehydra Zero Loss Drain.

$302.00
Air System Products RDP-FIT13 Dehydra Zero Loss Drain Tube Connector
Air System Products RDP-FIT13 Dehydra Zero Loss Drain Tube Connector

1/8" x 1/4" tube connector for the Air System Products Dehydra Zero Loss Drain.

$13.00
Air System Products FDP-VA1 Dehydra Zero Loss Drain Discharge Nipple
Air System Products FDP-VA1 Dehydra Zero Loss Drain Discharge Nipple

Replacement discharge nipple for the Air System Products Dehydra Zero Loss Drain.

$13.00
Air System Products RDP-Vent Dehydra Zero Loss Drain Vent
Air System Products RDP-Vent Dehydra Zero Loss Drain Vent

Replacement vent for the Air System Products Dehydra Zero Loss Drain.

$18.00
Air System Products Robo-Drain and Dehydra Ball Valve
Air System Products Robo-Drain and Dehydra Ball Valve

Bronze or stainless steel replacement ball valve for the Air System Products Robo-Drain and the Air Systems Products Dehydra Drain.

Starting at $62.00
Air System Products DD2P-PLUG Dehydra Zero Loss Drain Inlet Plug
Air System Products DD2P-PLUG Dehydra Zero Loss Drain Inlet Plug

Replacement inlet plug for the Air System Products Dehydra Zero Loss Drain.

$4.00
