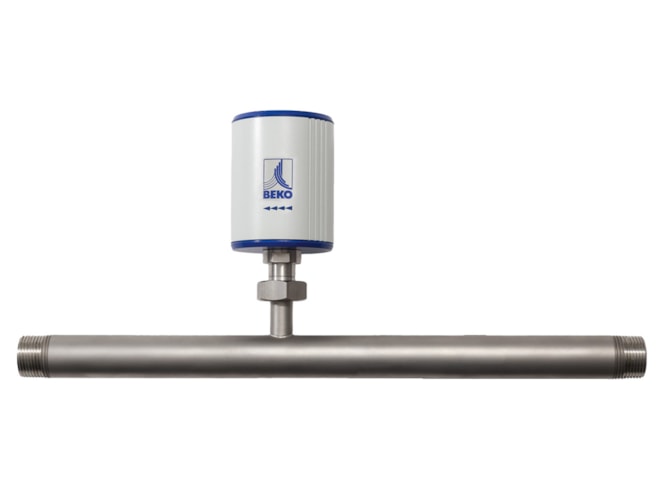

BEKO Technologies METPOINT FLMc Compact Flow Meter

Stationary compact flow meter with integrated digital display.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $1,495.94
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Murphy headshot

Matt Murphy

Senior Applications Specialist - 15 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • SF13 compact flow meter
  • Measuring section with integrated digital display
    • Built-in flow sensor
  • 100-240 VAC / 24 VDC / 50-60 Hz multi-voltage power supply

The BEKO Technologies METPOINT FLMc Compact Flow Meter has two temperature sensors installed in series, in the direction of the flow. The first sensor measures the compressed air's current temperature, while the second sensor is electrically heated to a temperature that is 40K higher than the first sensor. When there is a higher volume of flow, the temperature at the sensors drops faster, so the electric heater of the second sensor must increase its heat output. The energy consumed to maintain the temperature difference is proportional to the volume flow, and this is used to provide the necessary flow measurements.
