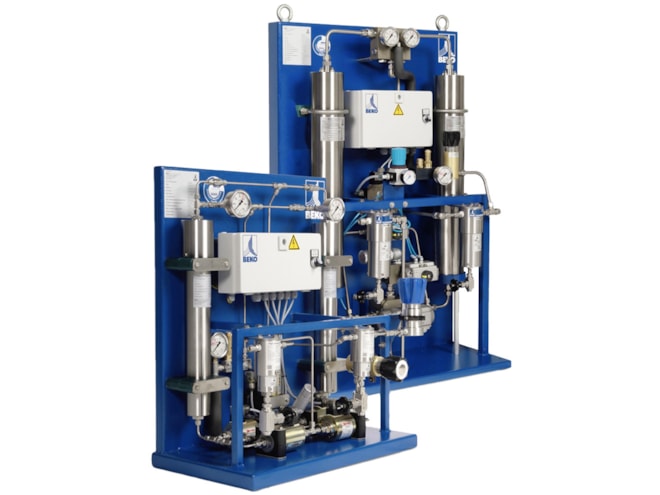

BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer
High pressure heatless dryer with full stainless steel components and PLC controller.
Highlights...
Contact an Expert
Tara Samuel
Order Management Specialist - 10 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- 1450 to 5000 PSIG pressure ratings
- 35 to 480 SCFM flow rates
- -40°F standard pressure dew point
- -100°F optional outlet pressure dew point available
- Vessels and all components are stainless steel
- Standard electrical power supply: 85 - 265 VAC; 24 Vdc; 50-60 Hz
- Included pre-filtration grade SX: .01 μm
- FX 1 μm optional pre-filtration grade available
- Included post-filtration grade FX: 1 μm
- Min. / max. air inlet temperature: 41°F / 131°F
- Min. / max. ambient temperature: 41°F / 122°F
Description
The BEKO DRYPOINT AC HP Heatless High Pressure Desiccant Dryer comes with a standard compressor synchronization control system. The intelligent control system automatically saves the current status of the process program and resumes operation from the point of interruption in case of a restart. This helps prevent an overload of adsorption desiccant. This solution offers operational safety and energy-saving coupling with compressor operation. The adsorption vessels are made of profiled stainless steel and feature a spacious opening that comes with a screw lid for easy maintenance. This also enables thorough inspections of the inside of the vessel.
