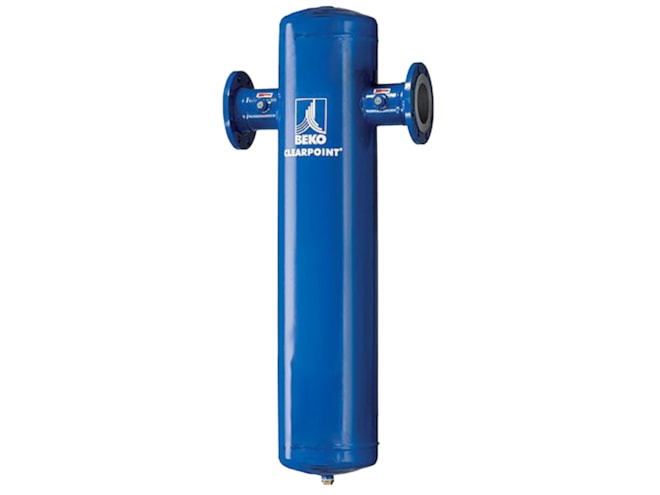

BEKO Technologies CLEARPOINT Flanged Water Separator

Designed for removal of large quantities of condensate, used downstream of aftercoolers.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $4,886.60
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 4 to 12" flange connections
  • 1900 to 21000 SCFM capacity
  • 232 PSIG pressure rating
  • 140°F maximum operating temperature
  • Powder coated carbon steel housing
  • BEKOMAT drain as standard
  • Designed according to ASME Sec. VIII, Div. 1
  • UM stamp

The BEKO Technologies CLEARPOINT Flanged Water Separator is utilized alongside aftercoolers and refrigeration dryers. It's designed to eliminate liquid accumulation occurring within compressed air pipelines due to condensation. The process of compression inherently generates condensation in all compressed air systems. Inadequate water or condensate control can lead to process pollution, component breakdown, and significant differential pressure. Such outcomes can incur substantial expenses in contrast to the cost of proper mitigation.
