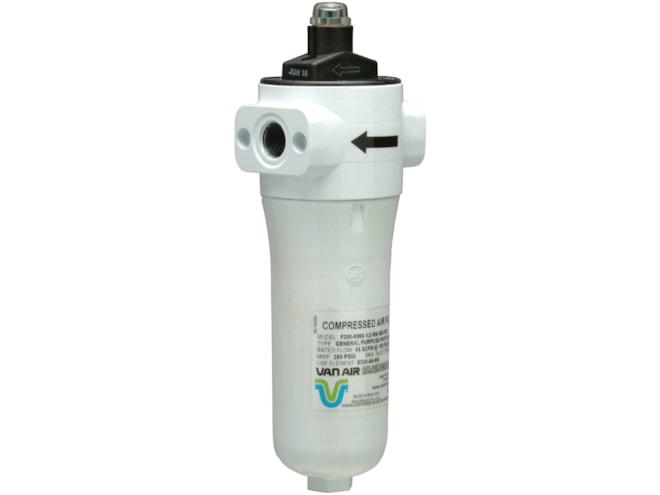

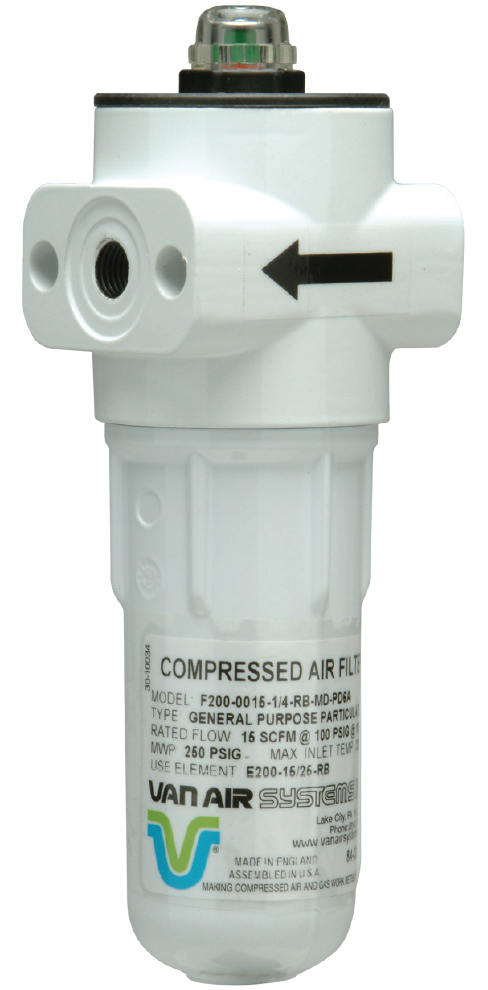

Van Air Systems F200 Series Compressed Air and Gas Filter

Durable filter for removal of oil aerosols, oil vapors, liquids, and sub-micron particles.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $448.88
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Henry Santos headshot

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 15 to 1600 SCFM capacity
  • 1/4" to 3" NPT connection
  • 250 PSIG max working pressure
  • 25 to 0.01 micron filter grades available
  • Manual and automatic drain options
  • Differential pressure indicator included
  • Manual drain option is approved for natural gas service

Van Air Systems F200 Series Compressed Air Filters remove compressor lubricant, oil aerosols, dust, dirt, and scale from compressed air systems. These filters are available with flow rates up to 1600 SCFM with nine different element grade options. Each F200 filter includes a rugged cast aluminum housing and a filter element constructed with stainless steel support cores and high-performance filter media.

Applications

  • Pneumatic hand tools
  • Instrument air & gas
  • Abrasive blasting
  • Dust collectors
  • Blow molding
  • Air cylinders, motors
  • Pre-filter for deliquescent, regenerative and refrigerated dryers
Van Air Systems F200 Differential Pressure Gauges
Van Air Systems F200 Differential Pressure Gauges

Pressure Indicator kit for F200 series compressed air filters.

Starting at $217.35
Van Air Systems F200 Manual Drain Kit
Van Air Systems F200 Manual Drain Kit

Manual drain kit for the Van Air F200 Series air filter.

$35.00 $33.08
Van Air Systems F200 Drain Adapter Kits
Van Air Systems F200 Drain Adapter Kits

1/2" and 1/4" NPT drain adapter kits for Van Air F200 Series air filters.

Starting at $56.70
Van Air Systems F200 Mounting Bracket Kit
Van Air Systems F200 Mounting Bracket Kit

Mounting bracket kit for the Van Air F200 Series air filters.

Starting at $103.95
Van Air Systems F200 Connector Kit
Van Air Systems F200 Connector Kit

Connector kit for the Van Air Systems F200 Series air filter.

Starting at $85.05
Van Air Systems F200 Locator Element
Van Air Systems F200 Locator Element

Replacement locator element for the Van Air Systems F200 Series air filter.

Starting at $60.00 $56.70
Van Air Systems F200 Body O-Ring
Van Air Systems F200 Body O-Ring

Pack of 6 replacement O-ring's for the Van Air F200 Series air filter.

Starting at $30.00 $28.35
