Overview

Features

  • 100 SCFM compressor capacity
  • 1" NPT connection
  • Pressure rating:
    • 232 PSIG
  • Voltage:
    • 115/1/60
  • Air-Cooled
  • 41 to 149°F operating temperature range
  • 122°F maximum ambient temperature
  • R513A refrigerant type

Description

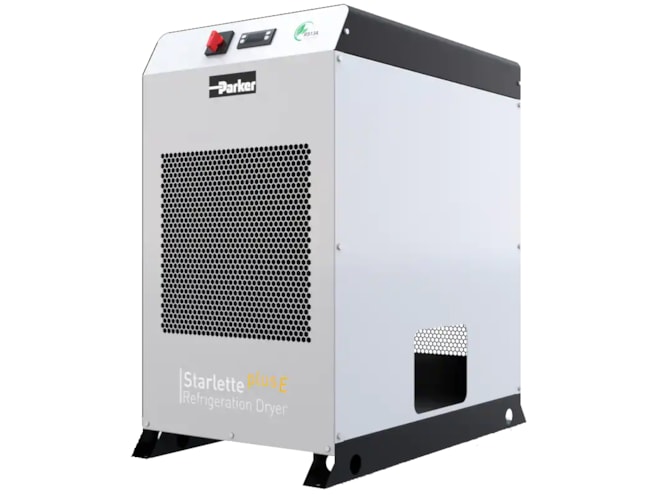

The Parker StarlettePlus-E Series SPS 0100 Refrigerated Air Dryer is developed around an aluminum heat exchanger (E-Pack), which includes a large air/air heat exchanger to pre-cool the incoming hot, saturated compressed air and reduce energy consumption. The exchanger includes a stainless steel demister separator for liquid removal over all operating conditions. Environmentally friendly R513A refrigerant is used on all units. All models are equipped as standard with a digital controller that includes an indication of compressed air temperature, volt free alarm contact, service reminder and integral timed drain control. All StarlettePlus-E models are ETL listed.
