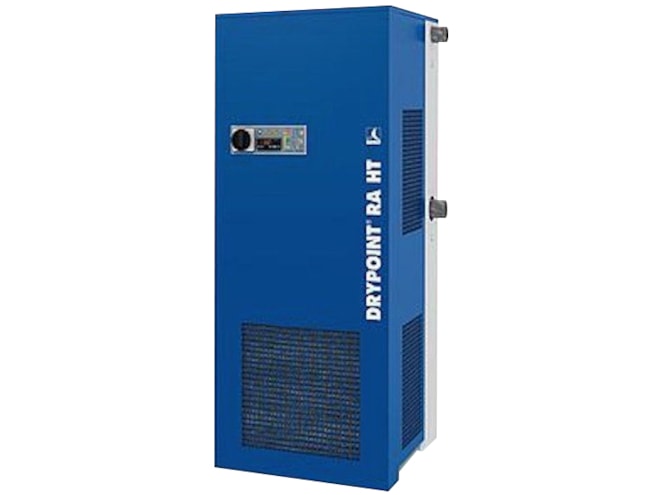

BEKO Technologies RA HT 200, 200 SCFM, High Temperature Refrigerated Air Dryer

1 1/2" NPT, 230/1/60, 1.28 kW, Timer Drain. View other configurations.

Tara Samuel headshot

Tara Samuel

Order Management Specialist - 10 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 200 SCFM capacity at 45°F outlet PDP
  • 1 1/2" NPT connection
  • 210°F maximum inlet air temperature
  • 34 to 120°F ambient temperature range
  • 200 PSIG pressure rating
  • 1.28 kW power consumption
  • 230/1/60 voltage
  • Outlet pressure dew point: Class 6 outlet PDP in accordance with ISO 8573-1:2010
  • .01 micron recommended post-filtration
  • UL and CSA certified
  • Pre-filter included
View Other Configurations

The BEKO Technologies DRYPOINT RA HT 200 High Temperature Refrigerant Air Dryer applies an all aluminum profile for minimal pressure drop, and self-cleans using gravity. The hot gas bypass valve is specifically designed for refrigerant drying, stabilizing the dew point. Each model includes a timer drain as standard.

Saturated, warm compressed air is pre-cooled in the air-to-air heat exchanger. The compressed air is then cooled in the air-to-refrigerant heat exchanger to the required pressure dew point. Re-entrainment of separated water droplets is prevented by the large condensate collection chamber and reduced velocity. The timer drain then discharges the accumulated condensate from the dryer, and the cold and dried compressed air leaves the dryer via an air-to-air heat exchanger, reducing the relative humidity and recovering the cooling capacity by up to 60%.
