Overview

Features

  • 177 SCFM capacity
  • 232 PSIG maximum working pressure
  • 1" NPT inlet/outlet connection
  • 232° pressure rating
  • 100 to 240 VAC / 50 or 60Hz power supply requirements
  • Integrated after filter standard
  • Pneumatic control

Description

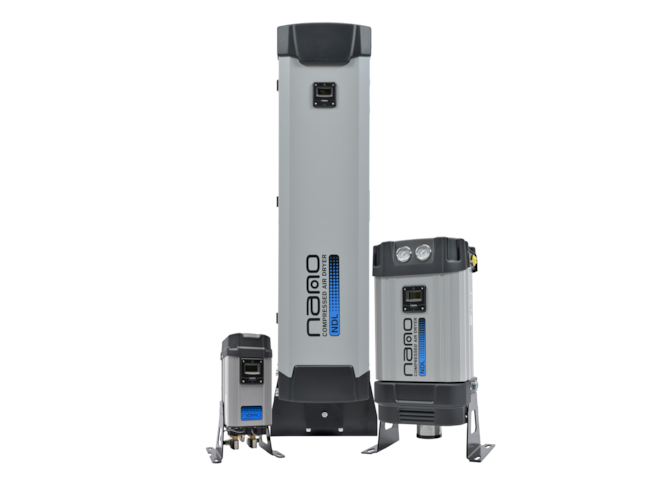

The nano-purification solutions NDL 130 GF PNU, 177 SCFM Desiccant Air Dryer is a snowstorm filled, ultra-high purity dryer that provides moisture and particulate protection to an air compression system. It is designed for use in the compressor room, at the point of application or integrated into original equipment. The unit operates with PLC controlled solenoid valves and unique exhaust air silencers, reducing noise levels. A digital display provides a full view of PLC operation and monitoring data. D2 packages also include easily replaceable cartridges.

The PLC control system includes 'power on,' 'hours run,' and 'service required' indicators. Memory retention built into the PLC enables the controller to pick up where it left off in the drying cycle, ensuring consistently clean and dry air downstream. Compressor synchronization is a standard energy saving feature, which starts and stops the dryer with a signal from the compressor or point-of-use equipment to eliminate purge loss when drying is not required.
