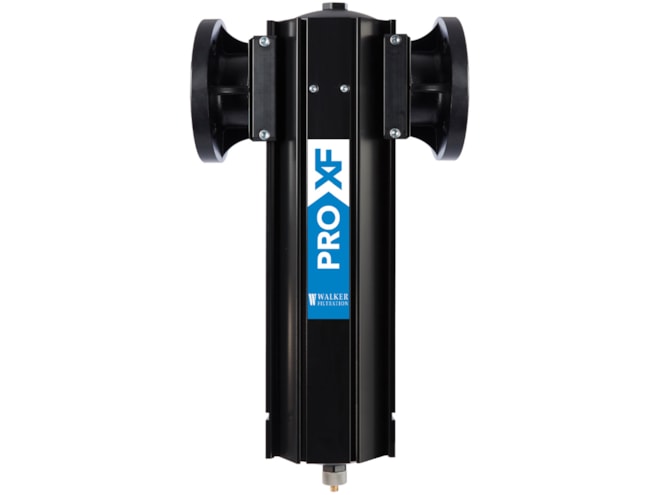

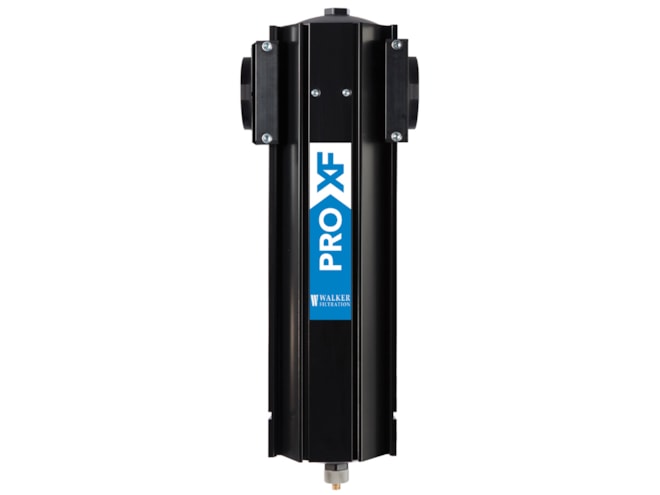

Walker Filtration PRO XF Series Water Separator

Centrifugal water separator with float operated automatic drain, and rated up to 232 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $1,782.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Tara Samuel headshot

Tara Samuel

Order Management Specialist - 10 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 700 to 3000 SCFM capacities available
  • Connections:
    • 700 SCFM: 2" NPT
    • 850 SCFM: 2.5" NPT
    • 1500 SCFM: 3" NPT or 3" flange
    • 3000 SCFM: 4" flange
  • 232 PSI max pressure
  • 35 to 176°F temperature range

The Walker Filtration PRO XF Series water separator is an effective solution for removing 99% of bulk water from compressed air systems using centrifugal force. By doing so, it prevents water contamination and boosts the reliability of the compressed air system, thus avoiding costly downtime. The product is tested in compliance with ISO 12500-4, ensuring minimal operating pressure loss and maintaining exceptional liquid removal, even at low velocities.

No replacement components are required for the PRO XF water separator, making it a viable, cost-effective solution.
