• 125 SCFM capacity
  • 180°F max inlet air temperature
  • Hermetic refrigeration system
  • Air operated condensate drain
  • Two-stage separator/filter
  • Voltage
    • 230/1/60
  • R-407c refrigerant
  • ISO 8753 Class 6 moisture removal

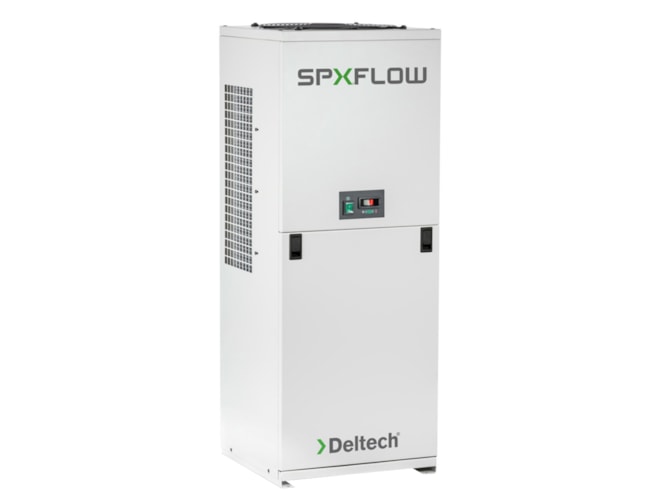

The Deltech HTDN125 non-cycling high inlet temperature refrigerated air dryer is designed to efficiently dry compressed air with inlet temperatures up to 180°F. The HTDN Series features an adjustable timed electric drain, widely spaced inlet and outlet connections, lighted on/off switch, dew point temperature indicator, and fault light. The top mount fan allows installation in tight spaces and the bottom base rail has pre-drilled mounting holes for a secure floor mount. The stainless steel brazed plate heat exchangers with integral demister separator ensure optimal heat transfer for the life of the dryer and the two-stage separator/filter removes condensed oil and water over a wide range of flows.
