Altec AIR Refrigerated Air Dryer Filter Kit

Complete filter kits designed for use with the Altec AIR RAD Series, UA Series, and DX Series Refrigerated Air Dryers.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $245.65
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Murphy headshot

Matt Murphy

Senior Applications Specialist - 15 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 1/2” to 3” NPT and 4” flange connection size range
  • Differential pressure indicators included:
    • Pop-up indicators on AR10-0020 and AR10-0025
    • Gauge indicators on AR10-0040 thru AR10-2000
  • Automatic float drains
  • Three different kits available:
    • 1 pre-filter
    • 1 pre-filter and 1 after-filter
    • 2 pre-filters and 1 after-filter

The Altec AIR Refrigerated Air Dryer Filter Kit is a complete compressed air filter kit that takes the guesswork out of which filters are needed to protect your specific Altec AIR air dryer and any downstream processes from contaminants found in the air supply. These Kits are matched to specific Altec AIR refrigerated air dryers in flow, performance, and connection size to ensure the protection matches the requirements of the incoming compressed air as well as the outgoing air.

Kit Contents:

1 pre-filter kit:

  • X1 grade - 1 micron coalescing filter

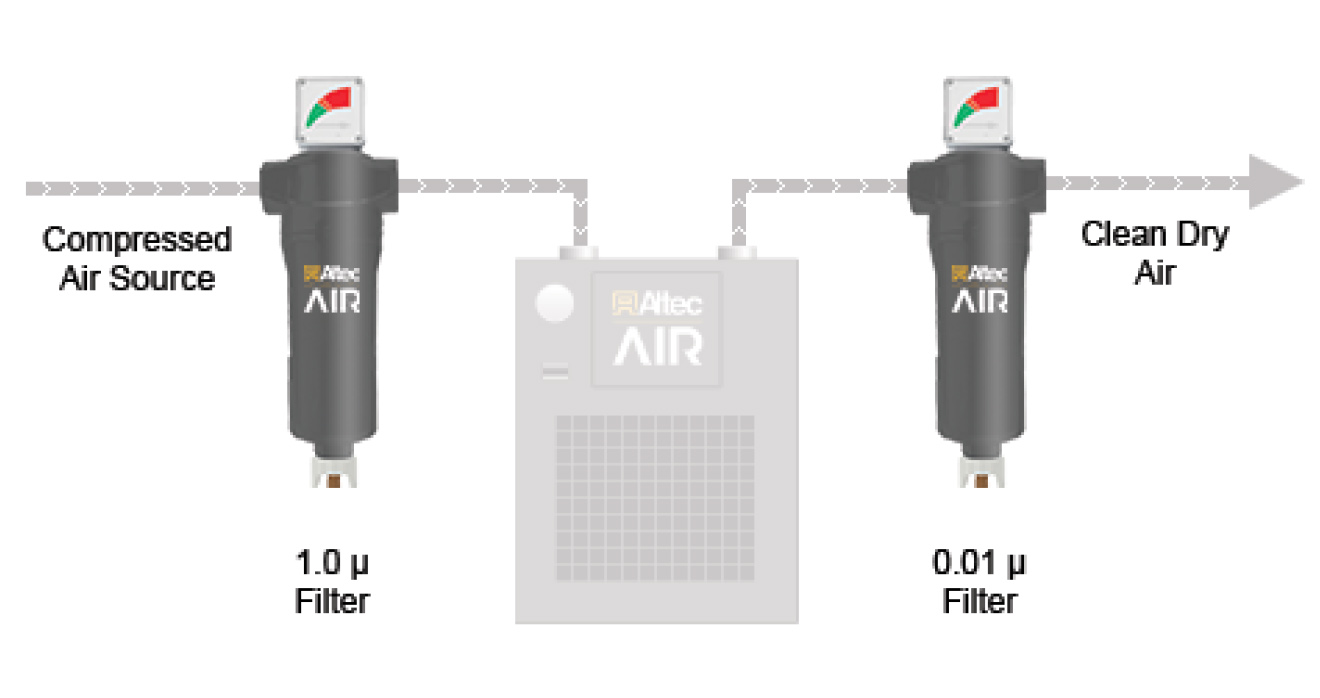

1 pre-filter and 1 after-filter kit:

  • X1 grade - 1 micron coalescing pre-filter
  • XA grade - 0.01 micron coalescing after-filter

2 pre-filters and 1 after-filter kit:

  • X5 grade - 5 micron coalescing pre-filter
  • X1 grade - 1 micron coalescing pre-filter
  • XA grade - 0.01 micron coalescing after-filter
