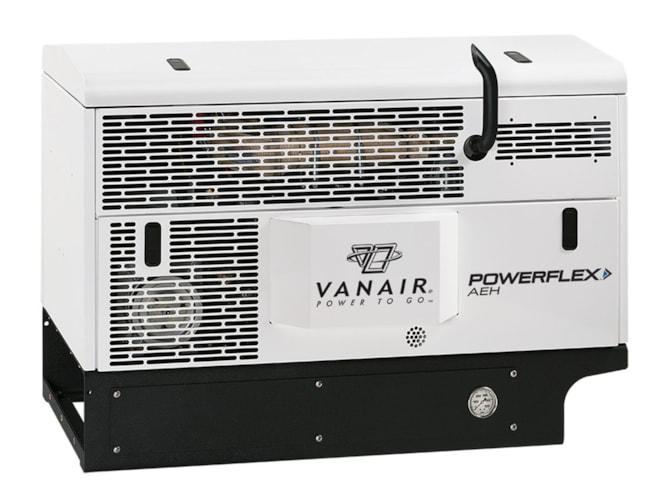

Vanair Powerflex AEH Series Diesel Rotary Screw Air Compressor with Generator

25 HP belt-driven compressor with brushless generator and 13 GPM hydraulic pump.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $24,305.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Mazanec headshot

Matt Mazanec

Founder & Manager - 24 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 40 CFM at high speed
  • 30 CFM at idle speed
  • 150 PSI pressure rating
  • -20 to 110°F ambient temperature range
  • Kubota Tier 4 final engine
  • Generator:
    • 6.8 kW at 60 Hz
    • 120/240 V
  • Up to 13 GPM hydraulic flow
  • Up to 3,000 PSI hydraulic pressure

The Vanair Powerflex AEH Series diesel driven rotary screw air compressor with generator is equipped with a 25 Kubota Tier 4 final engine with a 40 CFM capacity at 150 PSI. The AEH Series comes with a brushless, 6,800 watt AC generator and a powerful hydraulic pump, providing 13 GPM and up to 3,000 PSI for crane operation.

The Powerflex AEH Series remote control panel is able to be mounted remotely for convenient and safe use. The control panel has an  engine start/stop, engine fault lights, hour meter, switch override switch, a compressor and hydraulic on/off switch, speed control switch, and compressor fault light.

For maintenance and serviceability, the AEH Series has a hinged top and removable front panel for easy access, as well as a spin on air and oil separator element. The AEH Series has safety features such as an alternator failure indicator, air pressure safety relief valve, oil fill plug safety relief, hydraulic oil pressure-relief valve, and  low engine, service access door, engine over temperature, high temperature, and high pressure shut down.
