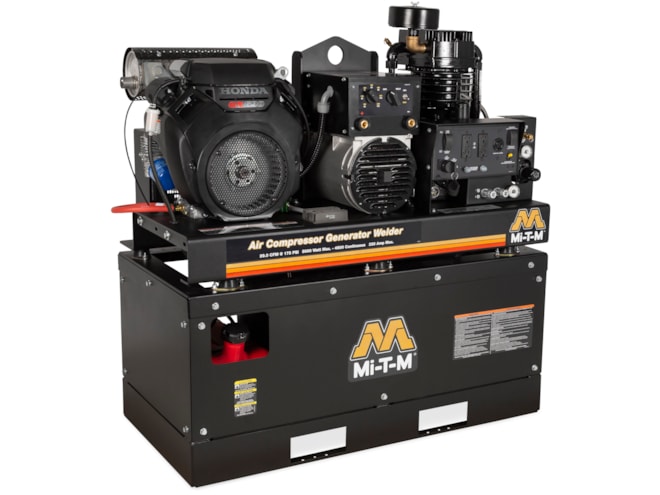

Mi-T-M 20 Gallon Industrial Two Stage Compressor/Generator/Welder Combo

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Features

  • 688cc Honda GX690 OHV Engine
  • Electric start - battery cables included, battery not included
  • 30.5 CFM @ 90 PSI / 29 CFM @ 175 PSI
  • 10-Gal Fuel Tank
  • Cast iron compressor pump
  • Splash lubricated
  • Stainless-steel braided discharge hose
  • Large canister intake filter
  • Oil level sight indicator
  • Brush-type 2 pole 120V/240V alternator
  • Total harmonic distortion (THD) less than 6%
  • 100% copper windings
  • Amperage selection switch, 170A or 220A maximum
  • Powder coated ASME receiver tank (Not available on base-mount models)
  • Powder coated two-piece belt guard (Four-piece belt guard on AGW-SH22-20M)
  • Regulator and two gauges for tank and outlet pressure
  • Manual drain valves for proper maintenance
  • 16-1/2" fly wheel
  • ASME Boiler and Pressure Vessel Code - UM (20 and 30-gallon models)

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

AGW Series Operation

Generator Mode

  • AC current only
  • Selector switch set to idle down
  • Switch is set to full throttle

Welder Mode

  • DC current only
  • Engine must be running full throttle
  • Selector switch must be set to full throttle
