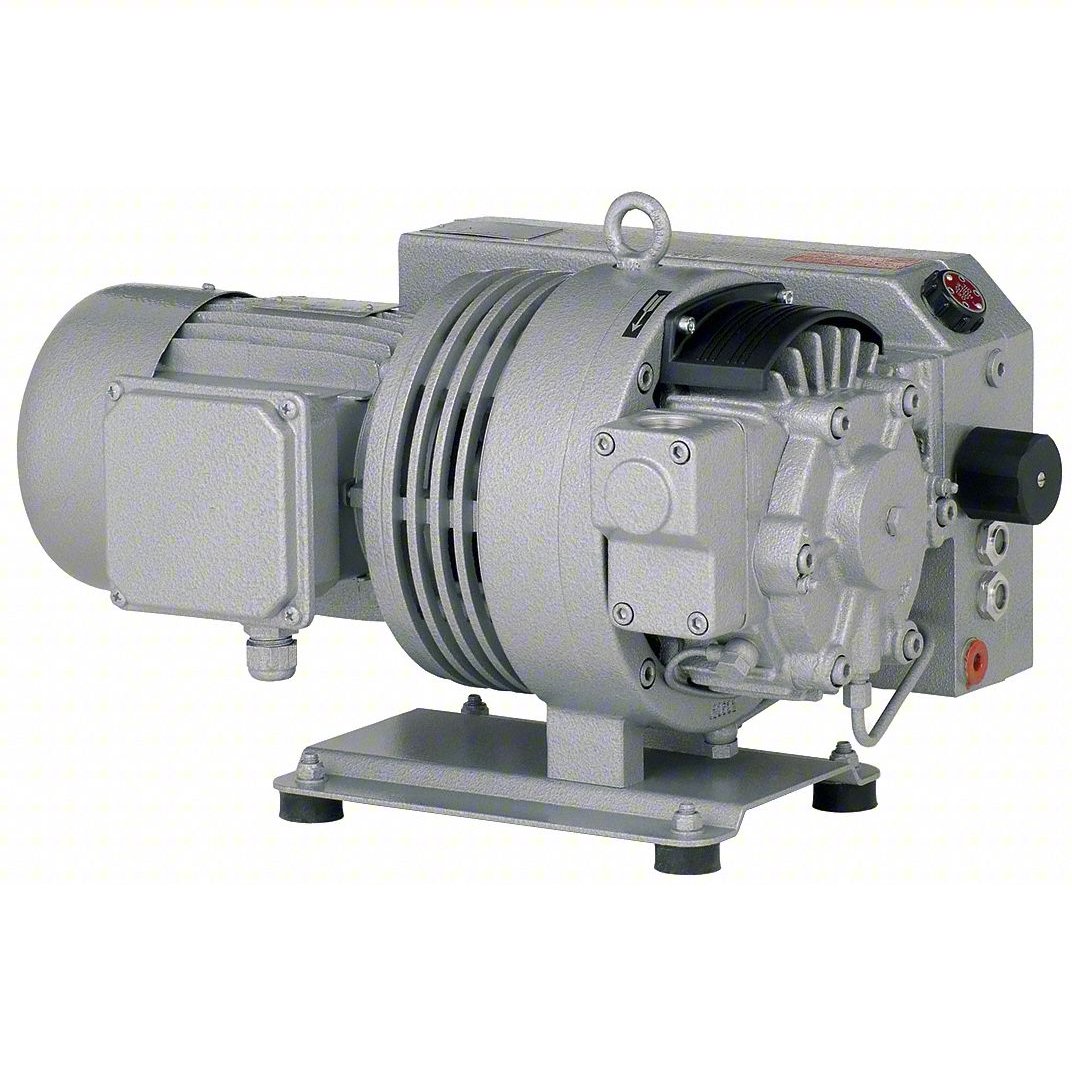

Elmo Rietschle VC-Series Rotary Vane Pump

Oil lubricated vacuum pump capable of maintaing vacuum levels as low as 29.91 inHg and max flow rate up to 903 CFM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Henry Santos headshot

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 2 to 40 HP options available
  • 35.3 to 903 CFM capacities
  • Oil flooded rotary vane vacuum pump
  • Flange motor
  • Oil/air heat exchanger
  • Included with models 7.5 HP and up:
    • Fine mesh filter
    • Vacuum non-return valve
    • Gas ballast valve
    • Protection cover
    • Oil separator

The Elmo Rietschle VC-Series Rotary Vane Pump utilizes centrifugal force to create vacuum. With nominal capacities ranging from 35.3 CFM all the way up to 903 CFM and horsepower options from 2 to 40 HP, the VC-Series pumps have the ability to cover a wide range of industrial needs.

Applications:

  • Environmental engineering: aeration, drying, dust extraction systems
  • Food processing: bottling and filling machines, cutting machines, vacuum packing machines
  • Industrial applications: drying systems, dust extraction systems, industrial furnaces, vacuum hold down
  • Packaging industry: centralized vacuum system, packaging machines
  • Pneumatic conveying woodworking industry: dust extraction systems, vacuum hold down
Part Number Price Available
VC700
Show Configuration
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 days". Click here to select options
