Overview

Features

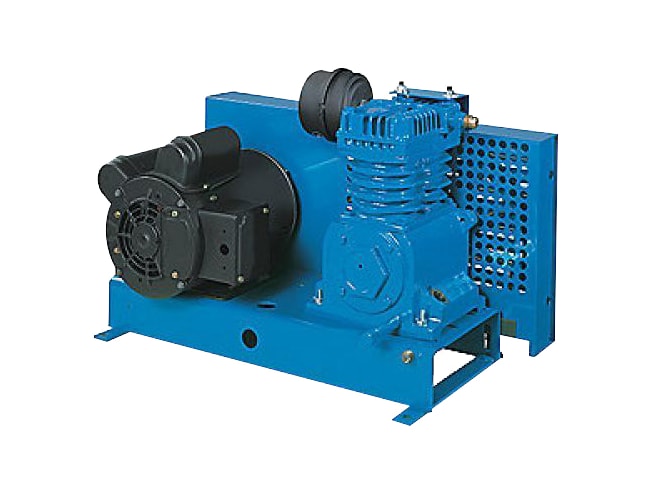

  • Base mount or tank mount
  • 30gal tank
  • 220 to 2,115gal system size (to be pumped to 40 PSI in 30min)
  • 1/3 to 5 HP
  • 3.3 to 26 CFM
  • 40 PSI pressure rating
  • Voltage options:
    • 115/1/60
    • 230/1/60
    • 230/460/3/60
  • ASME certified tanks
  • Manual tank drain
  • Unloading valves to assist in motor starting
  • Tank gauge
  • Pressure relief safety valve

Description

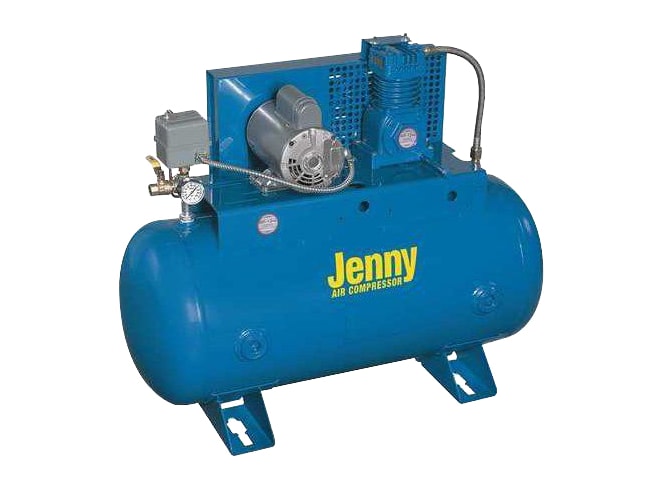

The Jenny Fire Sprinkler Piston Air Compressor is splash lubricated and uses a single stage cast iron pump. The compressor is belt driven with a large flywheel for additional cooling and simpler start-up, and each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil. A directional air shroud reduces pump temperatures, and the motor includes thermal overload protection. The belt guard is totally enclosed, and the steel base plate is powder coated. The large cannister intake filter includes replaceable filter elements. A magnetic starter is included on all 5 HP units. The electric motor is industrial/commercial grade UL listed.
