  • 5 to 30 HP
  • 19.1 to 102.2 CFM capacity
  • 175 PSI working pressure
  • 32 to 104°F ambient temperature range
  • Voltage:
    • 230/1/60
    • 208-230/460/3/60
    • 230/3/60
    • 460/3/60
  • Dynamically balanced flywheel
  • Magnetic starter
  • NEMA-1 control panel
  • OSHA approved totally enclosed belt guard
  • UL approved pressure switch
  • ASME approved discharge air service valve

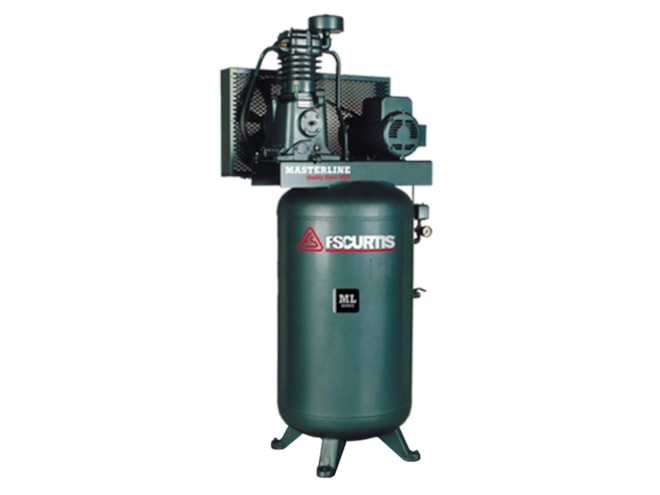

The FS-Curtis ML Series two stage piston air compressor is available from 5 to 30 HP in base and tank mount configurations. With patented Centro-Ring pressure lubrication, pressurized oil is supplied internally to all bearings and critical wear surfaces through the rifle-drilled crankshaft and connecting rods. The slow-turning pump increases pump life, while the cast iron design is corrosion-resistant for industrial performance. The ML Series features stainless steel valve assemblies, manual tank drain, oversized tapered main roller bearings, finned intercooler, metal intake filter/silencer, factory filled stamped steel belt guard, and suction valve head unloaders.

The ML Series is also available with an Ultrapack package, which adds the most common options and accessories. The Ultrapack has the standard features as well as an air cooled aftercooler, dual control (10 to 30 HP), low oil level shutdown, automatic tank drain, and tank isolator pads.

In Stock

Manufacturer Stock

Part Number Price Available
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
