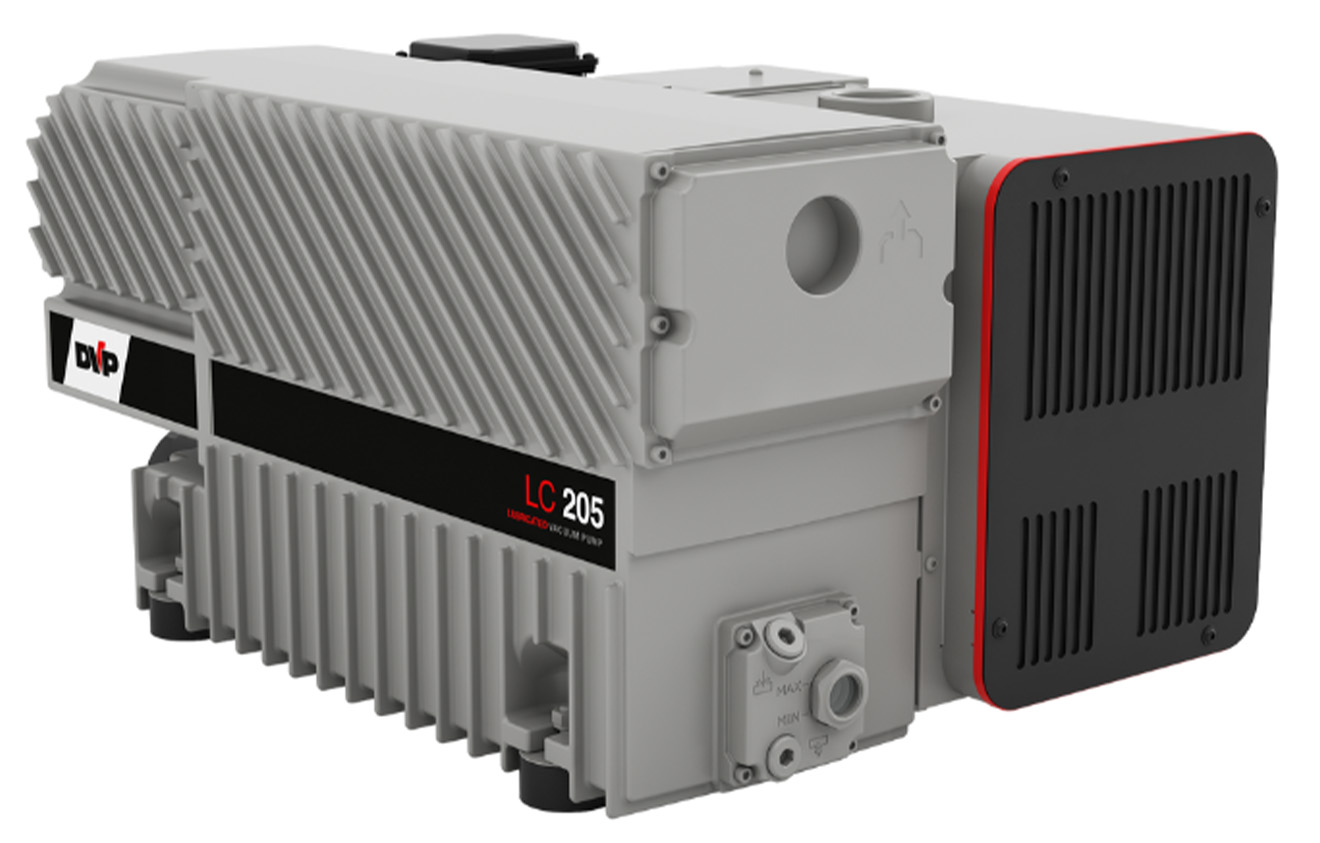

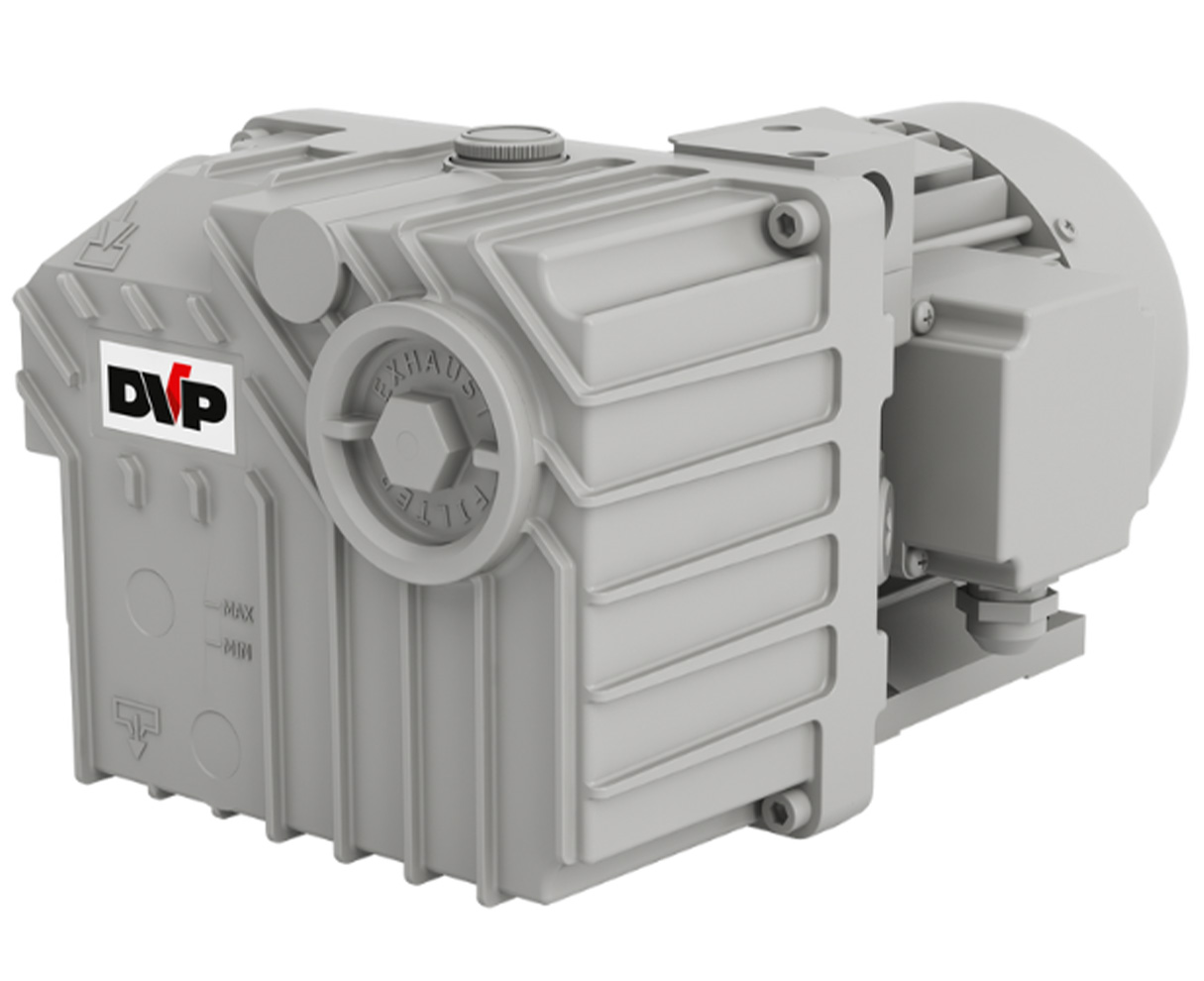

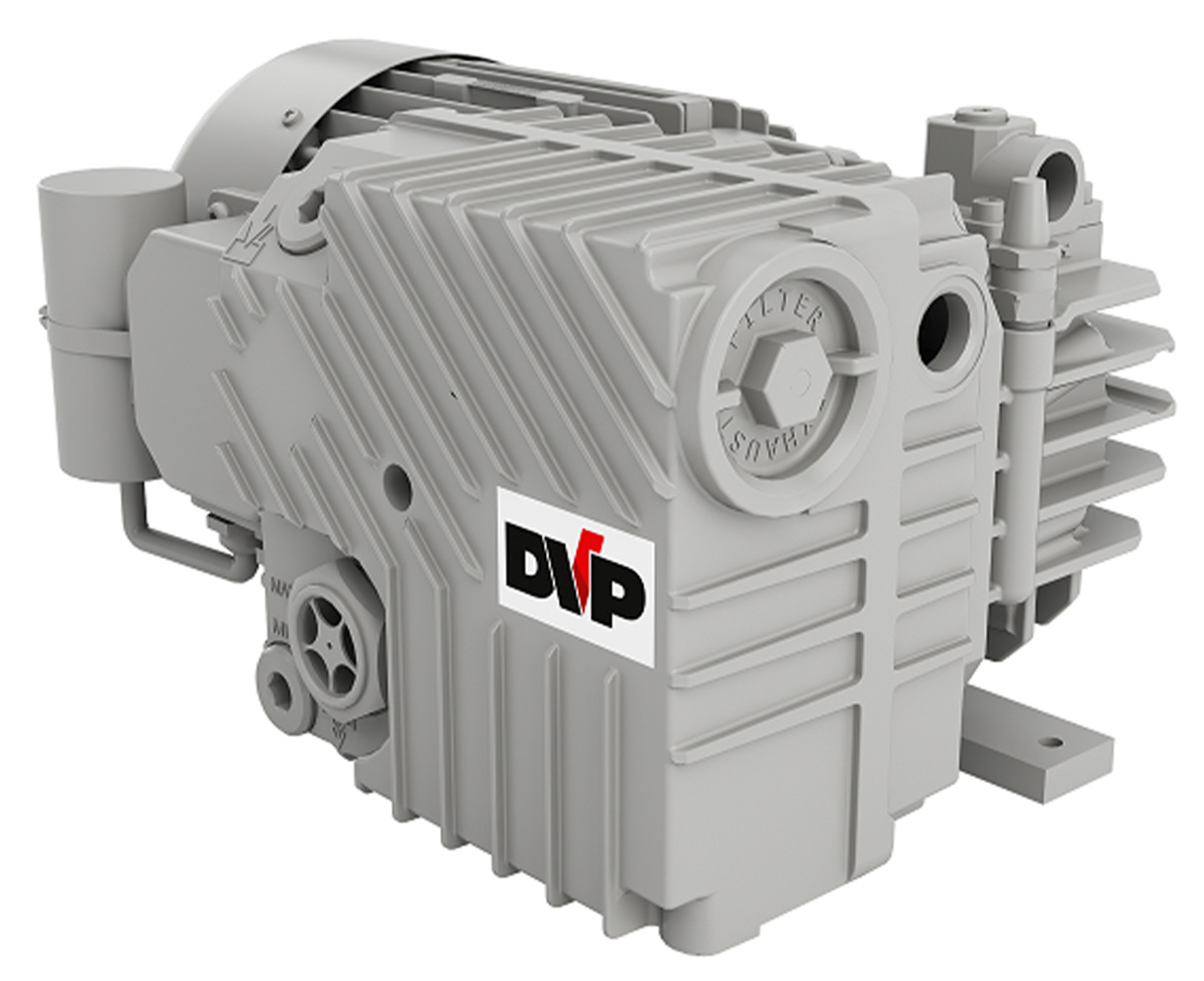

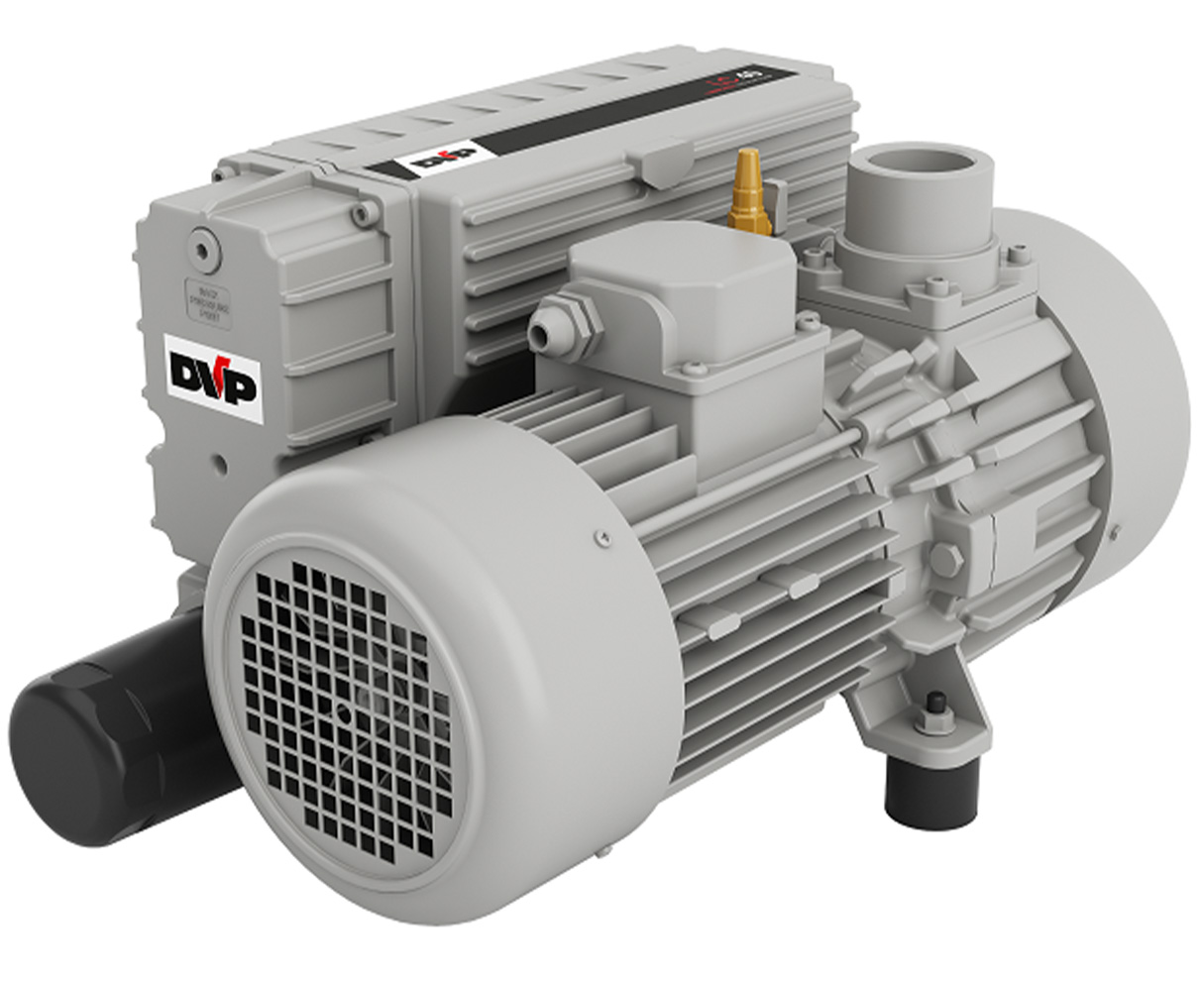

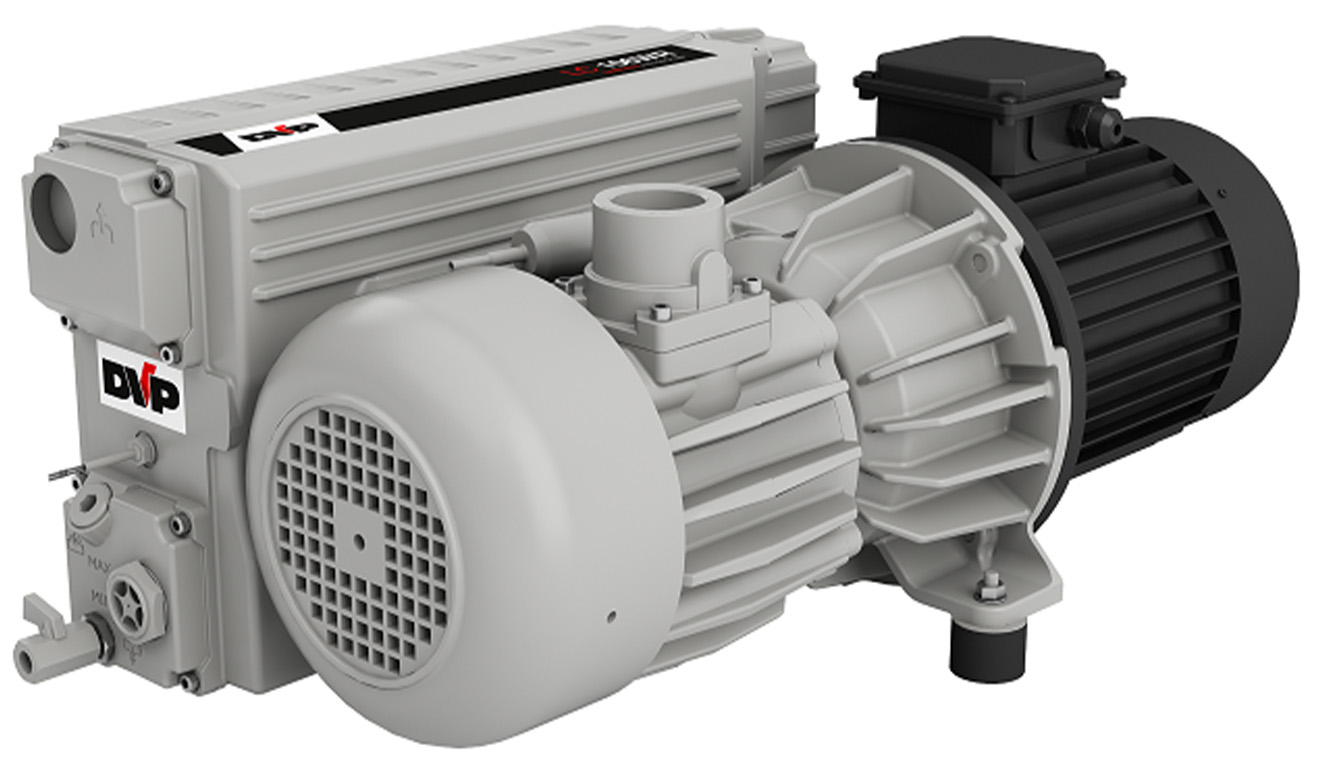

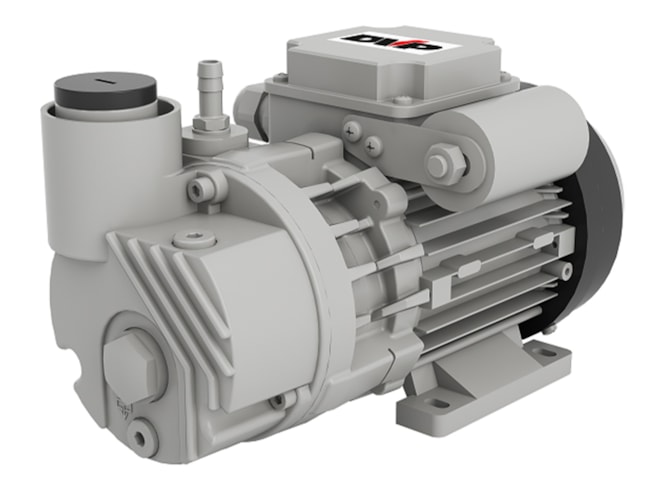

DVP LC Series Oil Lubricated Rotary Vane Vacuum Pump

Compact lubricated pump with 1.5 to 42.4 CFM capacities.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $968.05
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Henry Santos headshot

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 1.5 to 42.4 CFM nominal capacity options
    • 0.2 to 2.4 HP
  • Oil check valve
  • Exhaust mist eliminator
  • Gravity oil recovery valve (1.5 to 2.8 CFM models)
  • Floating oil recovery valve (5.3 CFM models and up)
  • Rotor and pump body NPO treated
  • Thermal protector

The DVP LC Series Oil Lubricated Rotary Vane Vacuum Pump is compact and lightweight allowing for installation in tight and restrictive spaces. These pumps are used when the intake flow may contain moisture, or when a better final pressure is required. These pumps may run continuously within certain pressure ranges, or connected to containers to be emptied, whose volume is appropriately sized for the pump flow rate. Long-term use at atmospheric pressure is not recommended.

The lubrification allows these pumps to intake water vapor. To avoid condensation of the water vapor, the lubricated rotary vane vacuum pumps are equipped with gas ballast, a system that introduces air in the compression stage and changes the vapor saturation pressure thus avoiding condensation.
