Overview

Features

  • 3500 CFM max compressor capacity
  • 281 gallons per hour at 230 PSI max drainage capacity
  • 44 to 230 PSI pressure range
  • 1/2" NPT inlet connections (3 options)
  • 1/4" BSP with brass hose barb adapter outlet connection
  • 3/2 way direct acting valve type
  • FPM valve seals
  • 6mm valve orifice
  • Aluminum construction with EP coating
  • NEMA 6 (IP68) protection

Description

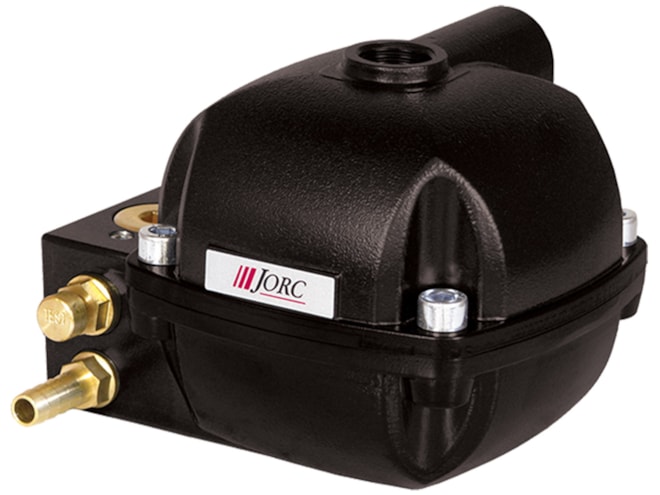

The JORC Industrial POD-TD Series drain is designed to remove condensate from compressed air systems without the need for electricity and without the unnecessary loss of compressed air. The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve.
