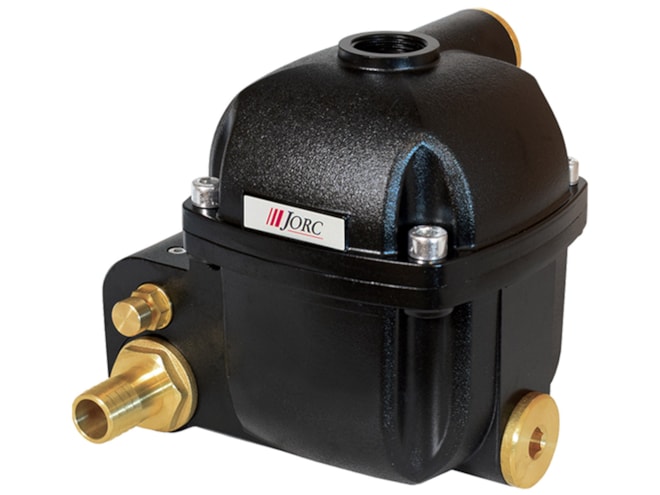

JORC Industrial NUFORS-XF Series Drain
Pneumatic zero air loss drain with a 12mm orifice and three 3/4" inlet ports.
Contact an Expert
Matt Murphy
Senior Applications Specialist - 15 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- 17500 CFM max compressor capacity
- 1260 gallons per hour at 230 PSI max drainage capacity
- 44 to 230 PSI pressure range
- 3/4" BSP or NPT inlet connections (3 options)
- 3/4" BSP with brass hose barb adapter outlet connection
- 3/2 way direct acting valve type
- FPM valve seals
- 12mm valve orifice
- Aluminum construction with EP coating
- NEMA 6 (IP68) protection
Description
The JORC Industrial NUFORS-XF Series drain is designed to remove all types of condensate from large capacity compressed air systems (up to 17500 CFM) without the need for electricity and without the unnecessary loss of compressed air. The NUFORS-XF has a large condensate discharge capacity of 1260 gallons condensate per hour at 230 psi. The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve.
