Overview

Features

  • 5 to 15 HP options
  • 17.2 to 51 CFM at 175 PSI
  • 80 or 120 gallon air receiver tank
  • Oil pump for pressure lubrication
  • 200 PSIG rated ASME/CRN-coded receiver
  • ASME-coded relief valves

Tech Specs

Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.

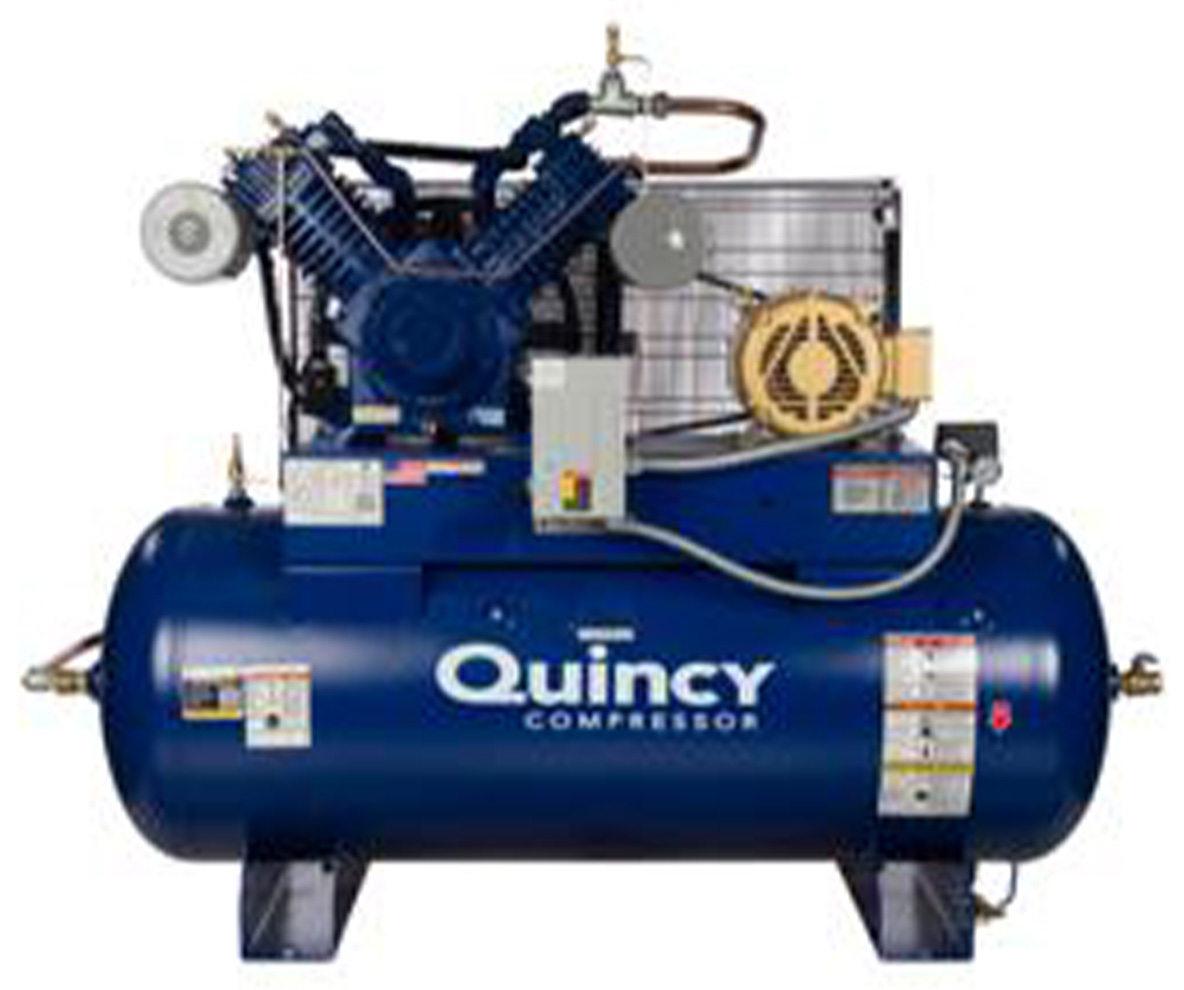

Quincy Compressor QP Series Two Stage Piston Air Compressor Tech Specs

Description

The Quincy Compressor QP Series two stage piston air compressor is designed for tough 175 PSI applications. The QP Series has an oil pump for pressure lubrication to the crankshaft, bearings, and connecting rod up to the wrist pins which allows smooth continuous operation. A high-efficiency fin and tube intercooler reduces inter-stage air temperature for maximum performance and increased valve life. The electronically balanced fan-type cast iron flywheel delivers a powerful flow of air across the intercooler, cylinder, and heads for effective unit cooling and smooth operation.

The QP Series is available in three package options:

  • Pro - Mag starter, motor overload protection, warranty, cast-iron construction
  • Pro Plus - All the Pro Features Plus: Low oil level switch, electric/automatic tank drain, vibration isolation pads (for horizontal units only)
  • Max - All the Pro Features Plus: Air-cooled aftercooler,  low oil level switch, pneumatic/automatic tank drain, vibration isolation pads (for horizontal units only)

In Stock

Part Number Price Available
571CS80VCA
$4,590.35 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
