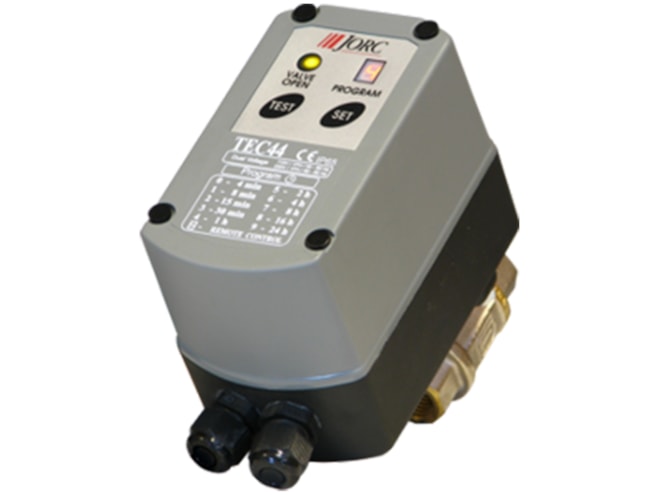

JORC Industrial TEC-44 Series Ball Valve

Motorized ball valve drain designed for applications with high condensate flows and heavy particulate loads.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $440.10
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • Up to 600 PSI pressure rating
  • Timer cycle range:
    • On: 7 seconds to 15 minutes
    • Off: 4 minutes to 24 hours
  • Included test feature
  • 2/2 way, motorized ball valve
  • 12mm valve orifice
  • FPM and Teflon valve seals
  • 1/2" NPT inlet/outlet connection
  • Materials:
    • Brass nickel plated valve housing
    • Stainless steel ball valve
  • Cable and plug power connection
  • NEMA4 (IP65) protection

The JORC Industrial TEC-44 Series ball valve is designed for difficult applications with high condensate flows and heavy particulate loads. With a wide ball valve operated by a powerful motor, and battery back-up for power outages, the TEC-44 provides reliable condensate removal at pressures up to 600 PSI. The TEC-44 can be used in oil lubricated as well as oil-free applications.

The TEC-44 is controlled by a microprocessor with 9 selectable timer settings. An LED indicator indicates the program selected and a valve open light confirms drain operation.

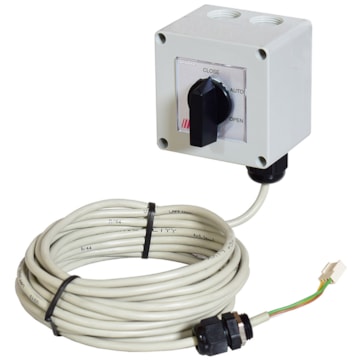

JORC Industrial AIR-SAVER Remote Switch
JORC Industrial AIR-SAVER Remote Switch

Remote switch with 16.5ft cable for use with JORC Industrial AIR-SAVER Ball Valves.

$305.35
JORC Industrial JC-Type Coils
JORC Industrial JC-Type Coils

Replacement solenoid valve coils for JORC timers and drains.

Starting at $53.00
JORC Industrial 52-037-001 TEC-44 Replacement Ball Valve
JORC Industrial 52-037-001 TEC-44 Replacement Ball Valve

1/2", 0 to 600 PSI, replacement ball valve for the JORC Industrial TEC-44 drain.

$135.60
