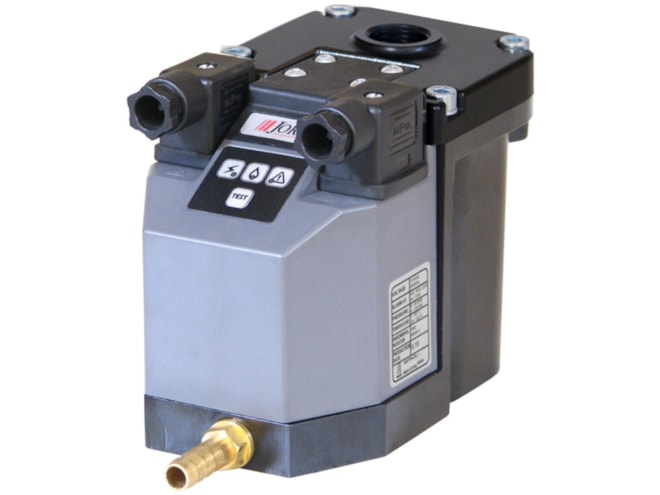

JORC Industrial SMART-GUARD-HP Series Drain

Electronic zero air loss condensate drain with alarm for high pressure applications up to 725 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $1,146.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Murphy headshot

Matt Murphy

Senior Applications Specialist - 15 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 31 gallons per hour at 725 PSI max drainage capacity
  • 3500 CFM max compressor capacity
  • 1/2" NPT inlet connection (3 options)
  • 1/4" with hose pipe connector outlet connection
  • Alarm options:
    • Normally open contact (N/O)
    • Normally closed contact (N/C)
  • Included test feature
  • Integrated mesh strainer
  • 1.8mm valve orifice
  • 2/2 way, direct acting valve type
  • FPM valve seals
  • DIN 43650-B power connection
  • Aluminum housing material
  • NEMA4 (IP65) protection

The JORC Industrial SMART-GUARD Series drain is specifically designed for applications with high pressures up to 725 PSI and up to 3500 CFM. It features a remote alarm contact, a test button, and LED indicator lights. The 2/2-way capacitive level sensor operates a direct acting valve to discharge condensate without losing any of the compressed air in the system. An integrated mesh strainer protects the valve from blockage and alarm contacts provide remote, real time indication of drain function. Alarm options available are normally closed (N/C) or normally open (N/O).

JORC Industrial Drain Heater
JORC Industrial Drain Heater

Anti-freezing device for JORC Industrial SMART GUARD, MAG-11, and POD-TD drains.

Starting at $571.00
JORC Industrial 9049 Drain Heater T-Adapter
JORC Industrial 9049 Drain Heater T-Adapter

Enables connecting the JORC Drain Heater to various 1/2" drains.

$49.15
JORC Industrial 34000 HP SMART-GUARD-HP Series Drain Service Kit
JORC Industrial 34000 HP SMART-GUARD-HP Series Drain Service Kit

Complete kit to maintain and service the JORC Industrial SMART-GUARD-HP Series 0 to 725 PSI drains.

$183.90

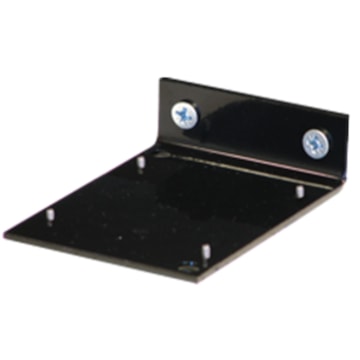

JORC Industrial 9021 Wall Mounting Bracket
