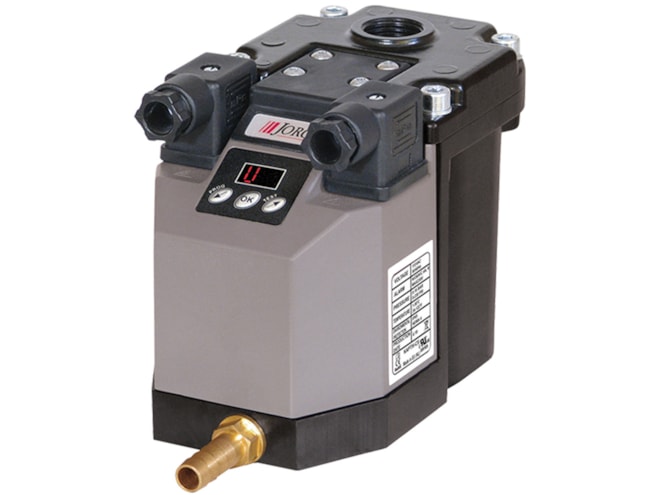

JORC Industrial SMART-GUARD-D-LUX Series Drain
Electronic zero air loss drain with digital programming display and built-in alarms.
Contact an Expert
Henry Santos
Senior Applications Specialist - 2 years at Compressor World
Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.
Need Help?
Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST
Overview
Features
- 0 to 230 PSI pressure range
- 3500 CFM max compressor capacity
- 1/2" NPT inlet connection (3 options)
- 1/4" with hose pipe connector outlet connection
- Included test feature
- Integrated mesh strainer
- 4mm valve orifice
- 2/2 way, direct acting valve type
- FPM valve seals
- Normally open and normally closed alarms
- DIN 43650-B power connection
- Aluminum housing material
- NEMA4 (IP65) protection
Description
The JORC Industrial SMART-GUARD-D-LUX Series drain features a remote alarm contact, service interval warning, and anti-air-lock. All of the programming options can be easily selected and activated by using the buttons on the front of the device and the digital display indicates the selected option.
The 2/2-way capacitive level sensor operates a direct acting valve to discharge condensate without losing any compressed air. An integrated mesh strainer protects the valve from blockage and alarm contacts provide remote, real time indication of drain function.
Installation and maintenance is fast and easy. The SMART-GUARD-D-LUX includes a six foot power cord and features a removable electronic module and top cover, allowing the user to disassemble the drain without disconnecting any of the pipe work.
